逻辑器件/收发器/编码器

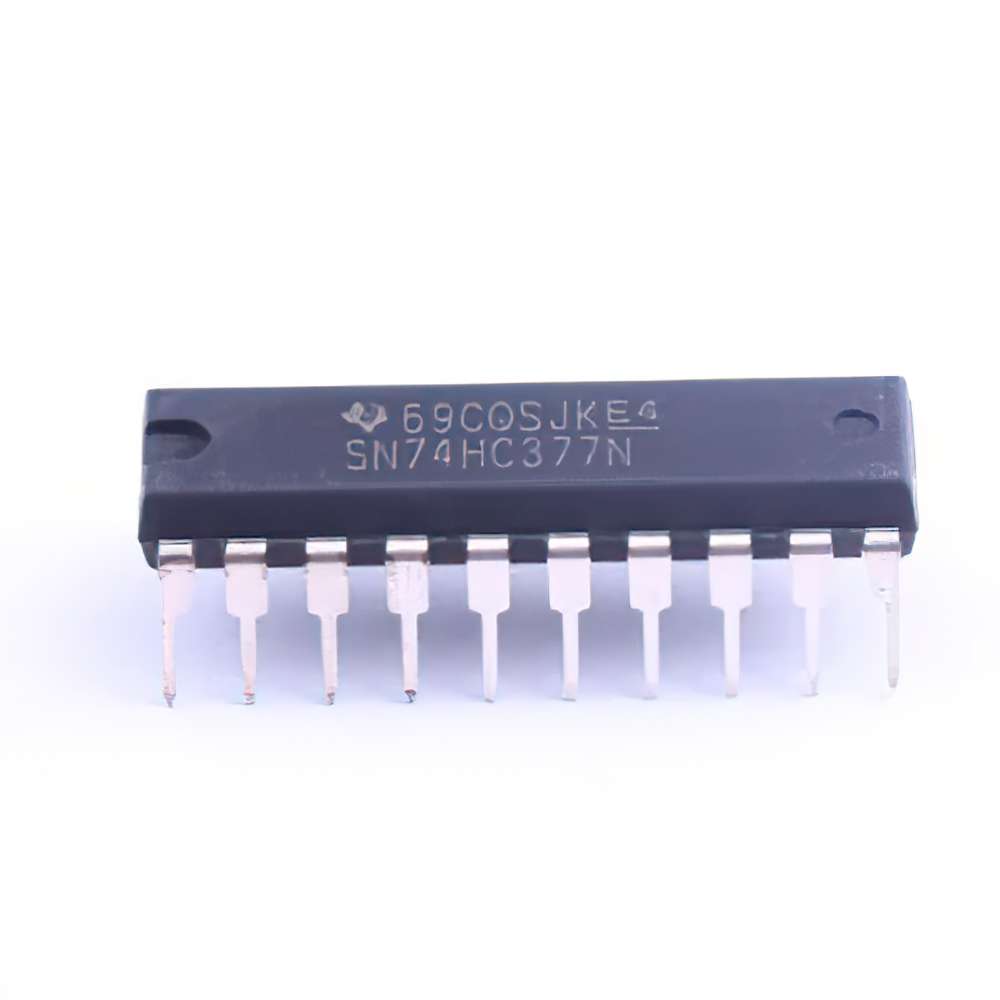

SN74HC377 Octal D-type flip-flop with clock enable input

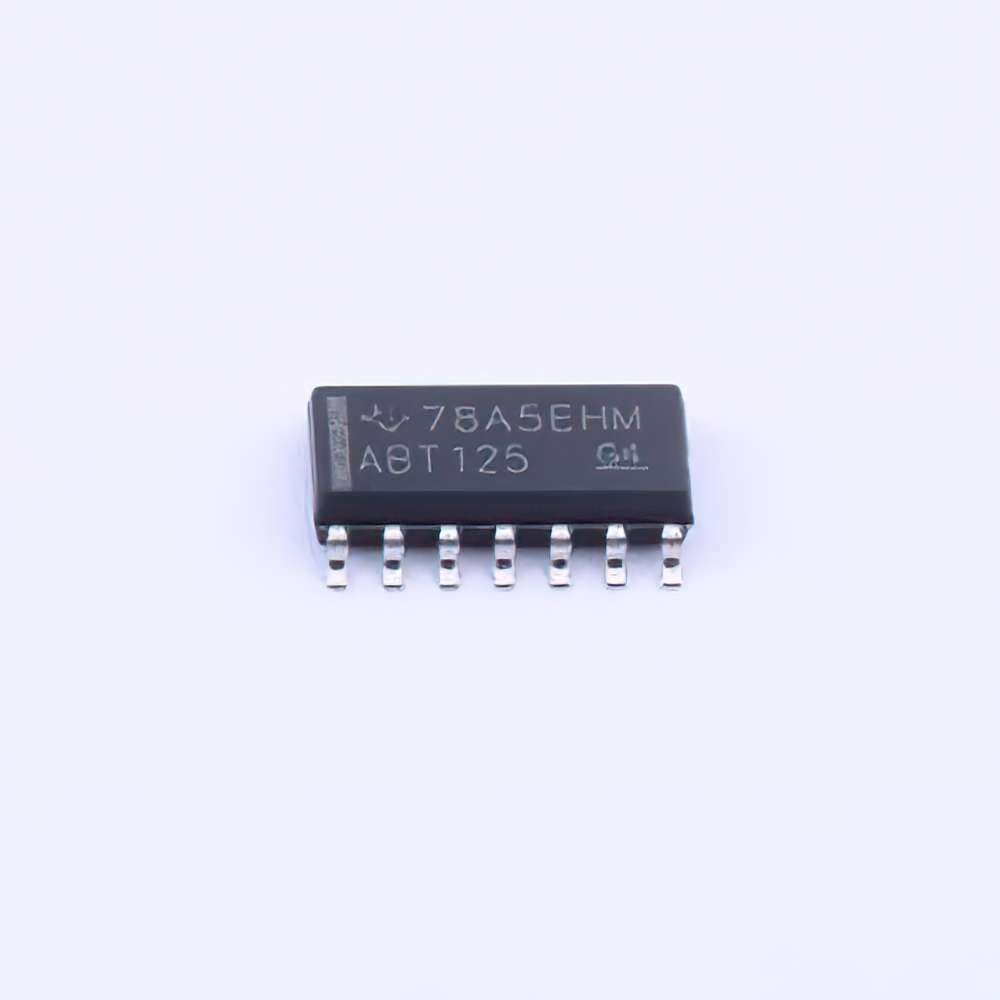

SN74ABT125 Quad Bus Buffer Gate with Three-State Outputs

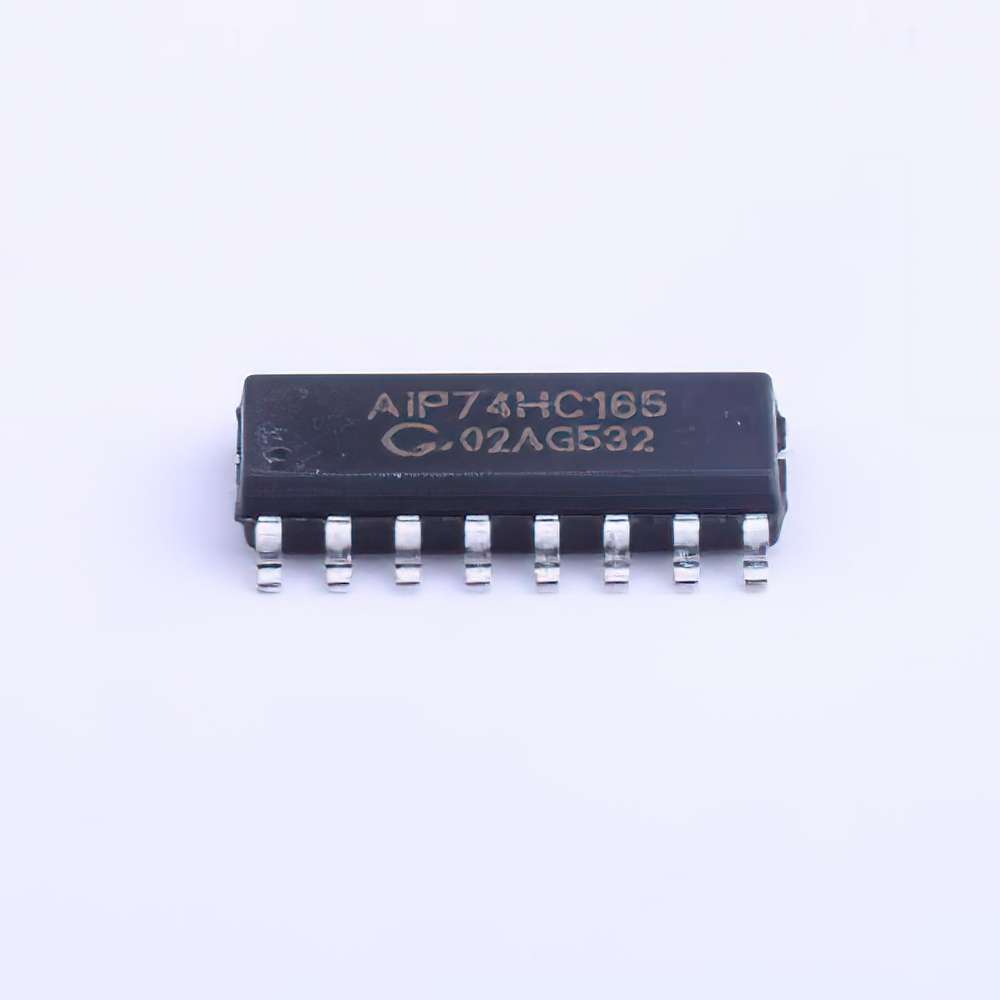

Logic Type: Shift Register Output Type: Complementary Function: Parallel or Serial to Serial Operating Voltage: 2V~6V Operating Temperature: -40℃~+85℃

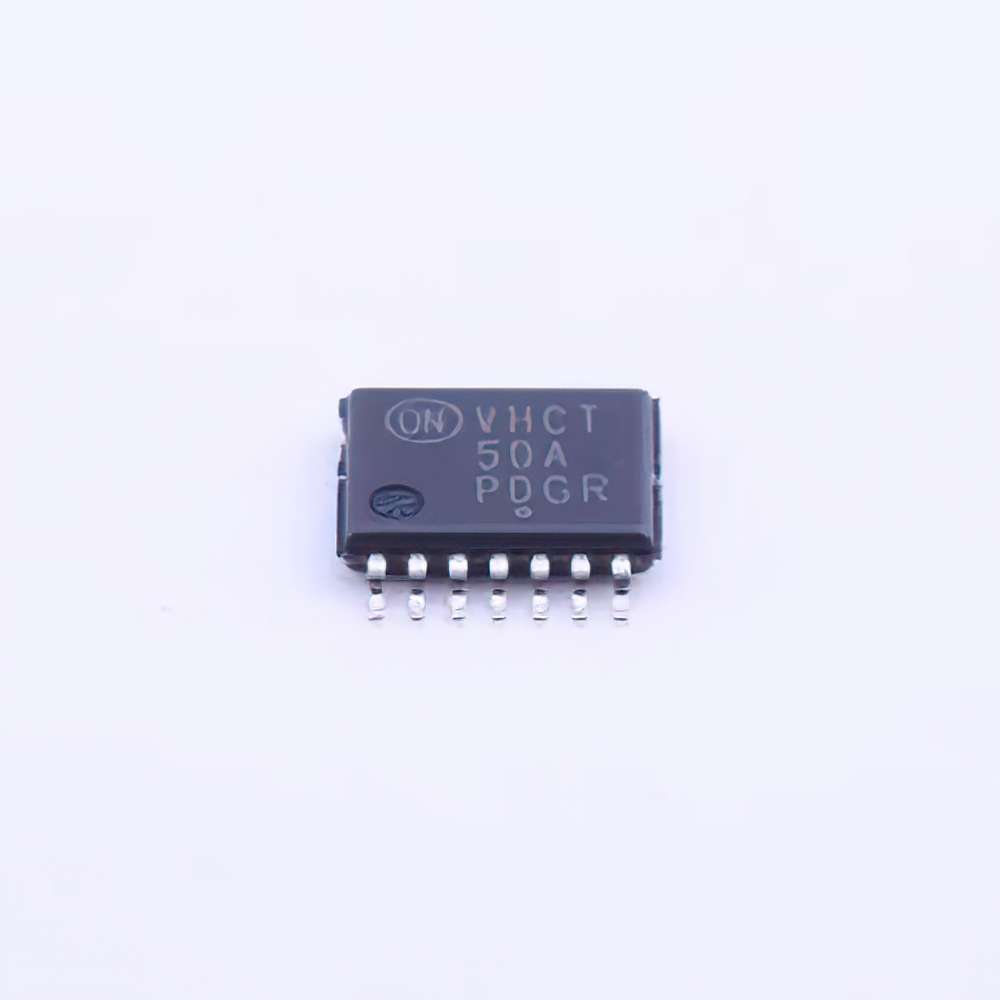

The MC74VHCT50A is a six-way non-inverting buffer fabricated using a silicon-gate CMOS process. It achieves high-speed operation similar to an equivalent bipolar Schottky TTL while maintaining CMOS low power consumption. The internal circuit consists of three stages, including a buffer output that provides high noise immunity and stable output. The device input is compatible with TTL-type input thresholds, and the output has a full CMOS level output swing. Input protection circuitry on the device allows overvoltage tolerance on the inputs, enabling the device to be used as a logic level translator converting from 3.0 V CMOS logic and to operate from high voltage supplies. The MC74VHCT50A input structure provides protection when voltages up to 7.0 V are applied regardless of the supply voltage. This allows the MC74VHCT50A to be used as an interface to 5 V to 3 V circuits. The output structure also provides protection when VCC = 0V. These input and output structures help prevent device damage due to supply voltage - input/output voltage mismatch, battery backup, hot insertion, etc.

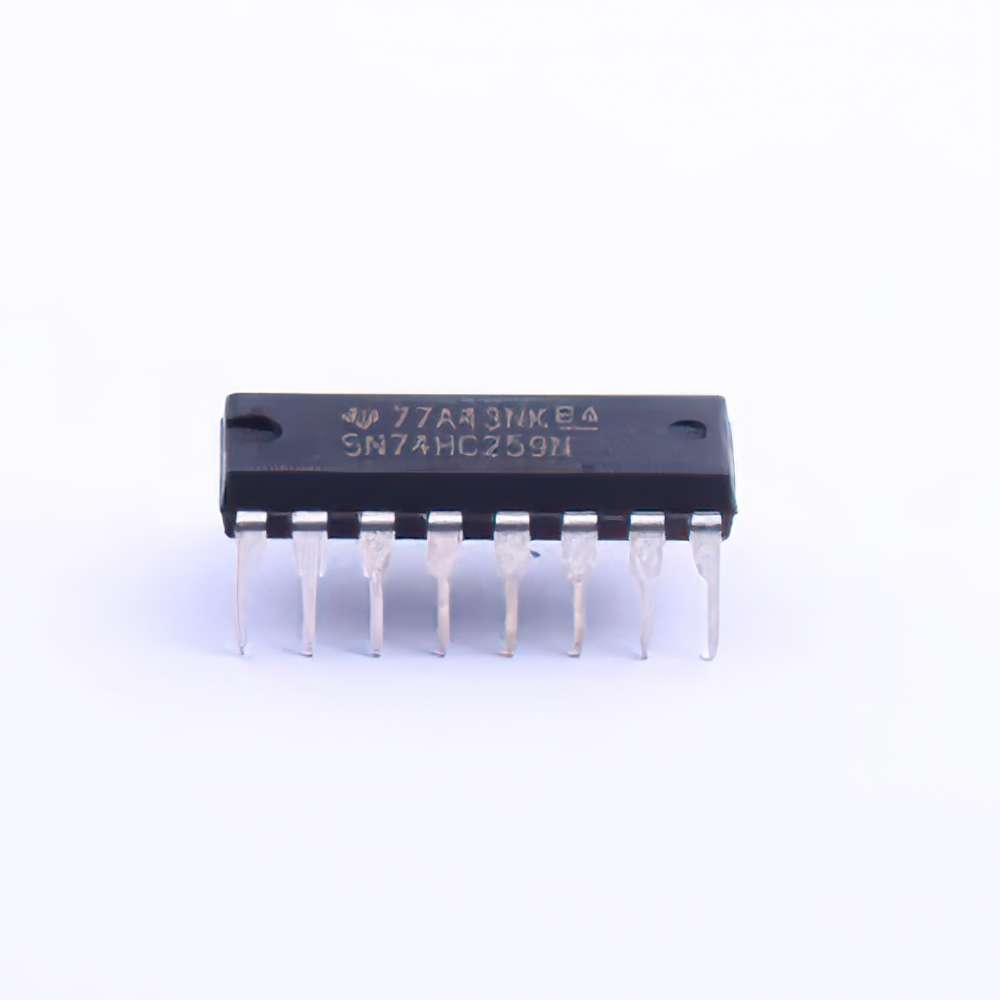

SN74HC259 8-Bit Addressable Latch

SN74AUC1G17 Single Schmitt Trigger Buffer

The MC74HC1G32 is a high-speed CMOS 2-input OR gate fabricated using a silicon-gate CMOS process. This internal circuit consists of multiple stages, including a buffer output that provides high noise immunity and stable output. MC74HC1G32 output drive current is 1/2 of MC74HC series.

buffer, non-inverting
