逻辑器件/收发器/编码器

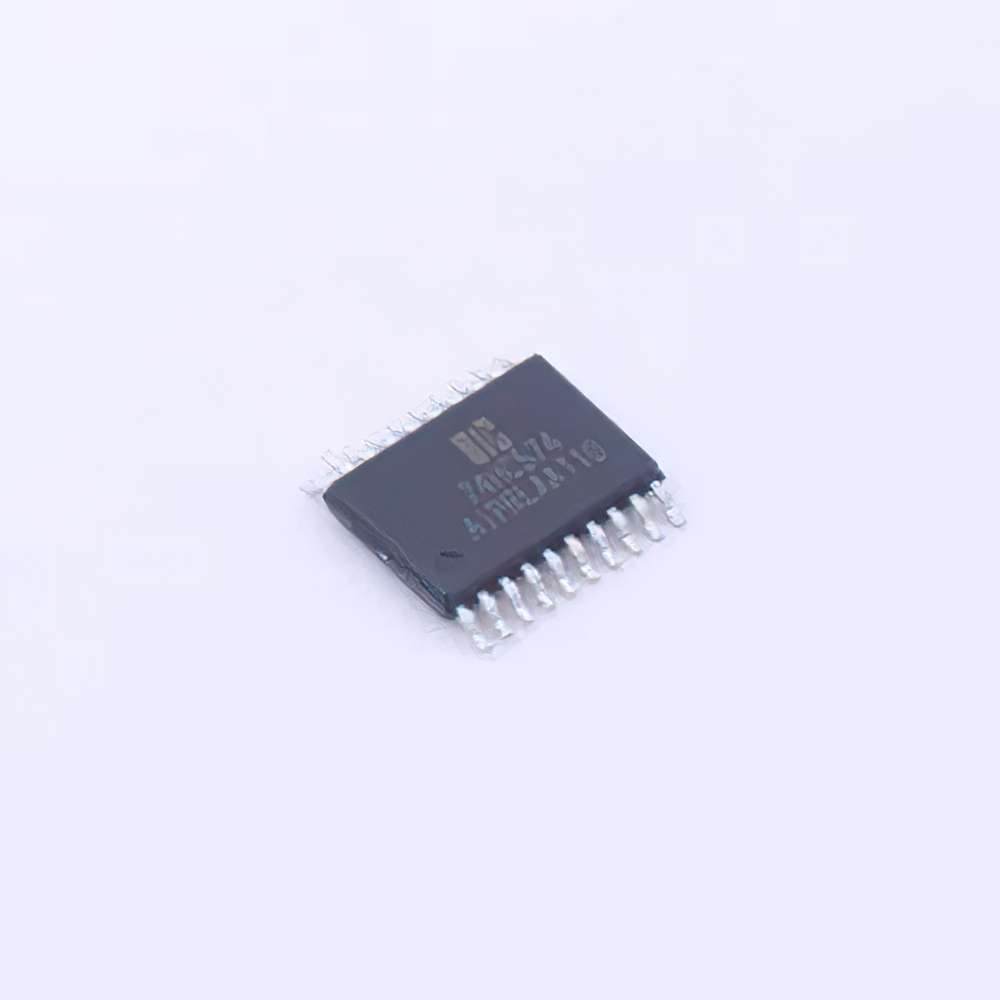

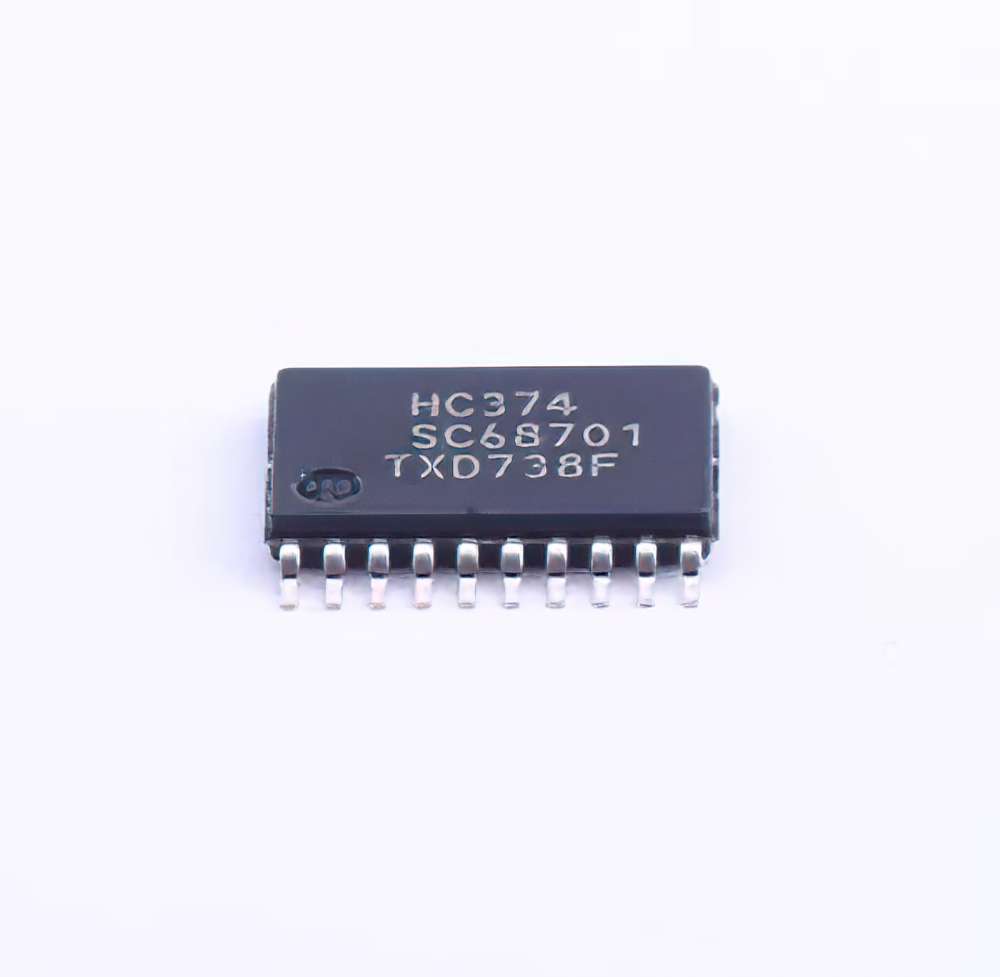

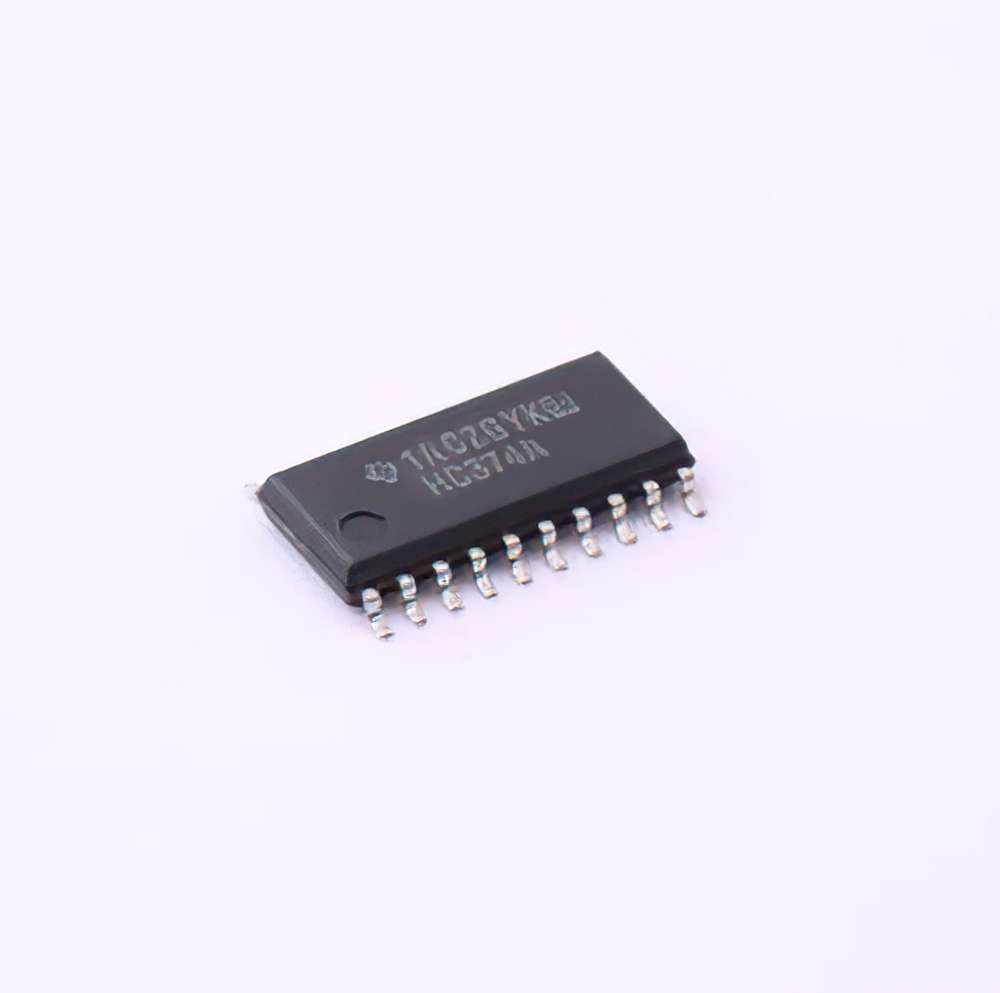

Belonging Series of Logic Circuit: 74HC Function: - Type: D-type Output Type: Tri-state, Non-inverting Clock Frequency: 35MHz Maximum Propagation Delay at Different V, Maximum CL: 26ns@6V, 50pF Flip-Flop Type: Positive Edge Voltage-Power: 2V~6V Quiescent Current (Iq): 8uA Input Capacitance: 3.5pF Low Level Output Current (IOL): 7.8mA High Level Output Current (IOH): 7.8mA

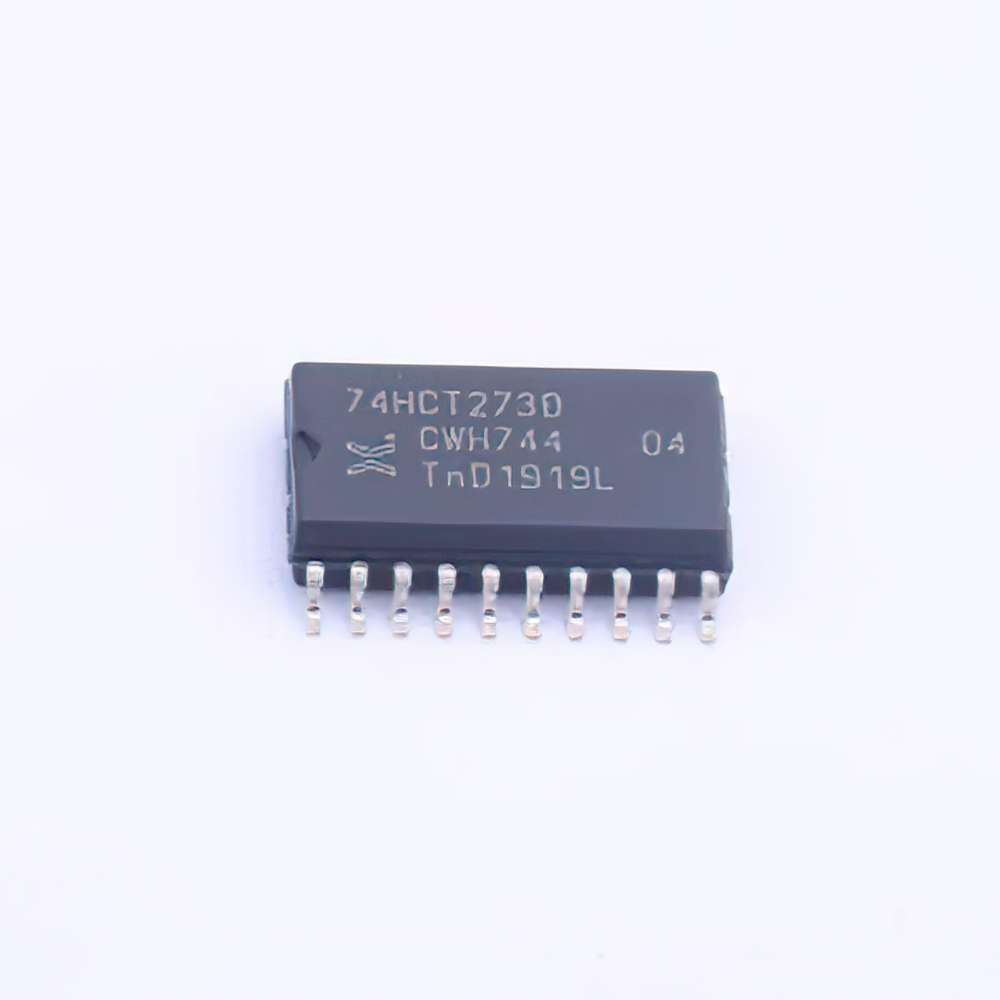

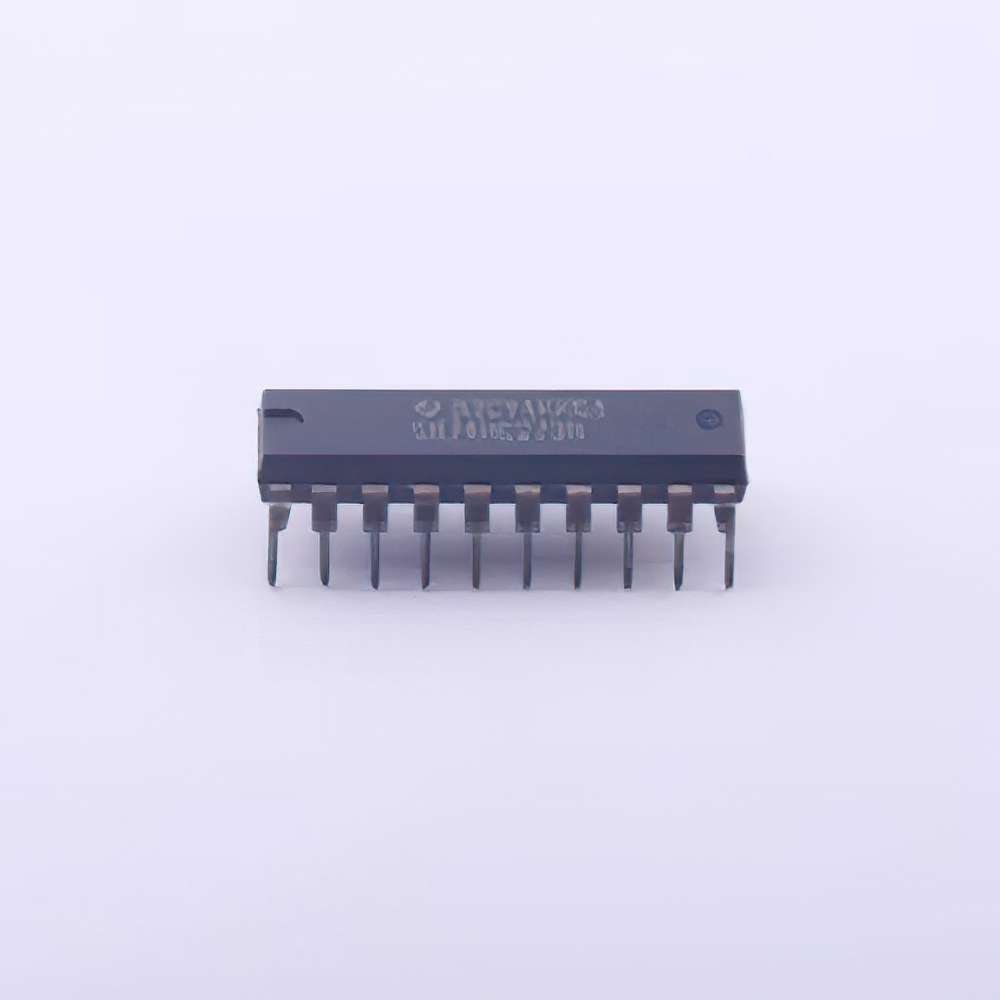

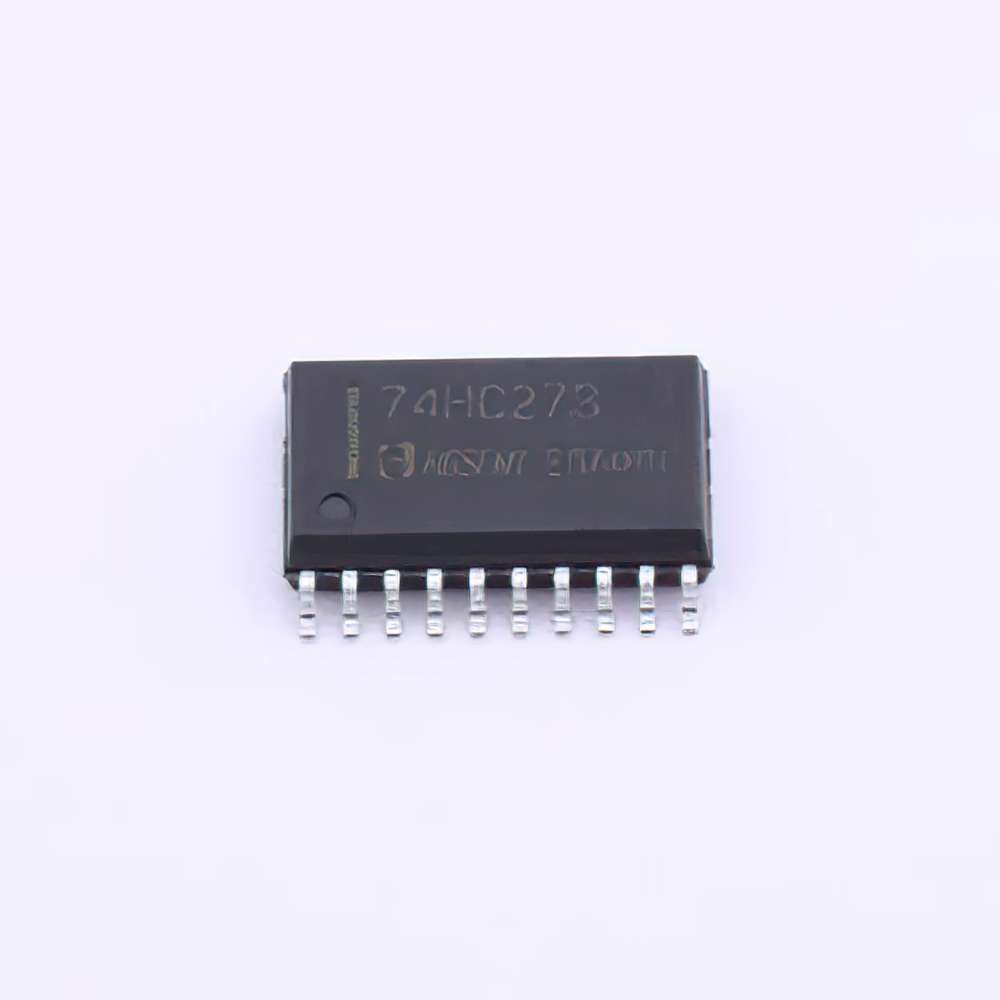

SN74HC273 Octal D-Type Flip-Flop with Clear

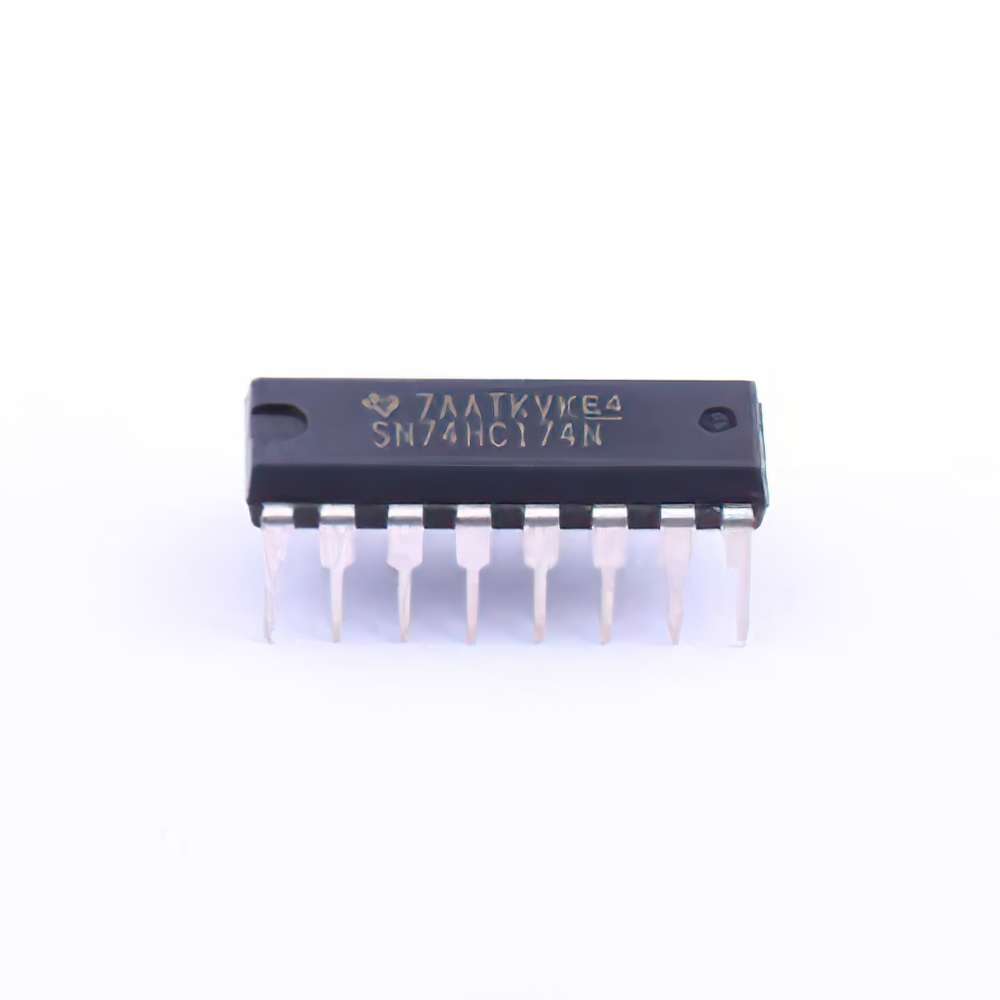

SN74HC174 Sixteen D-Type Flip-Flops with Clear

Trigger D-Type Flip-Flop

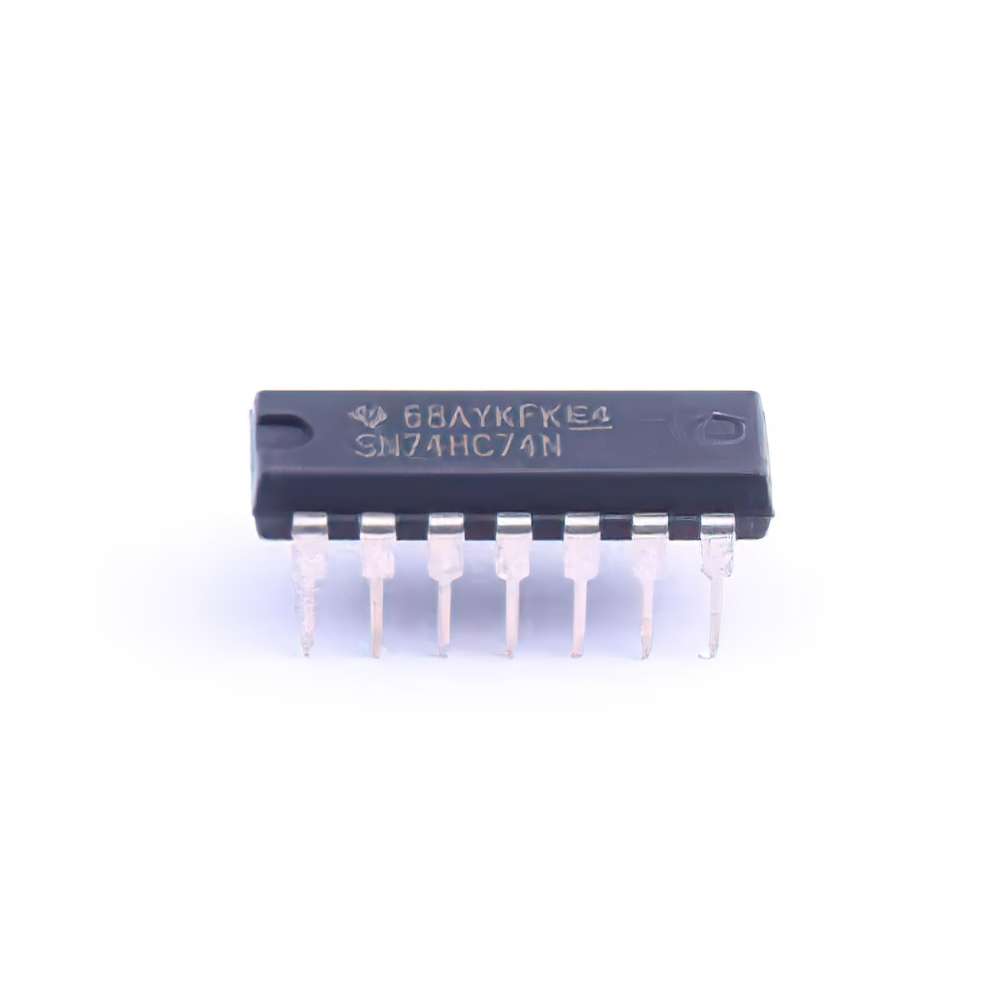

SN74HC74 Dual Type-D Rising-Edge Flip-Flop with Clear and Preset

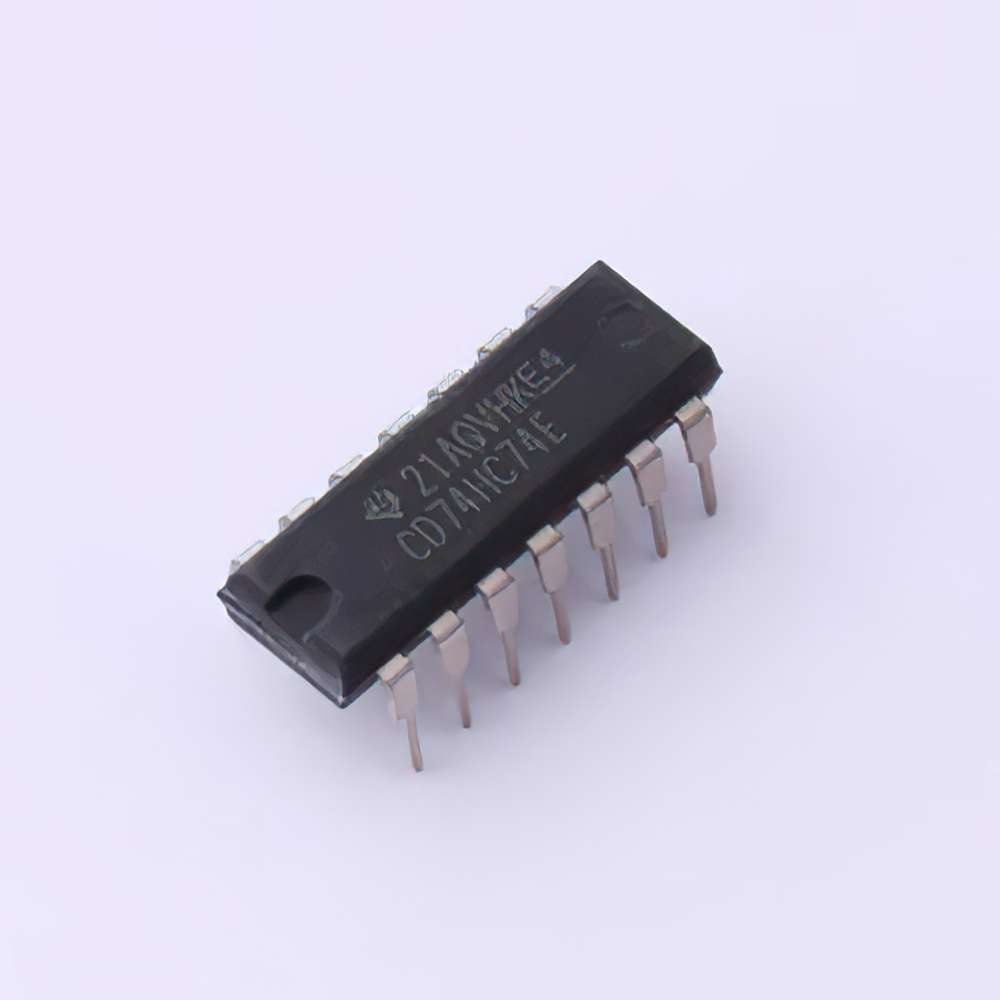

High-Speed ​​CMOS Logic Dual Positive Edge-Triggered D-Type Flip-Flops with Set and Reset 14-PDIP -55 to 125

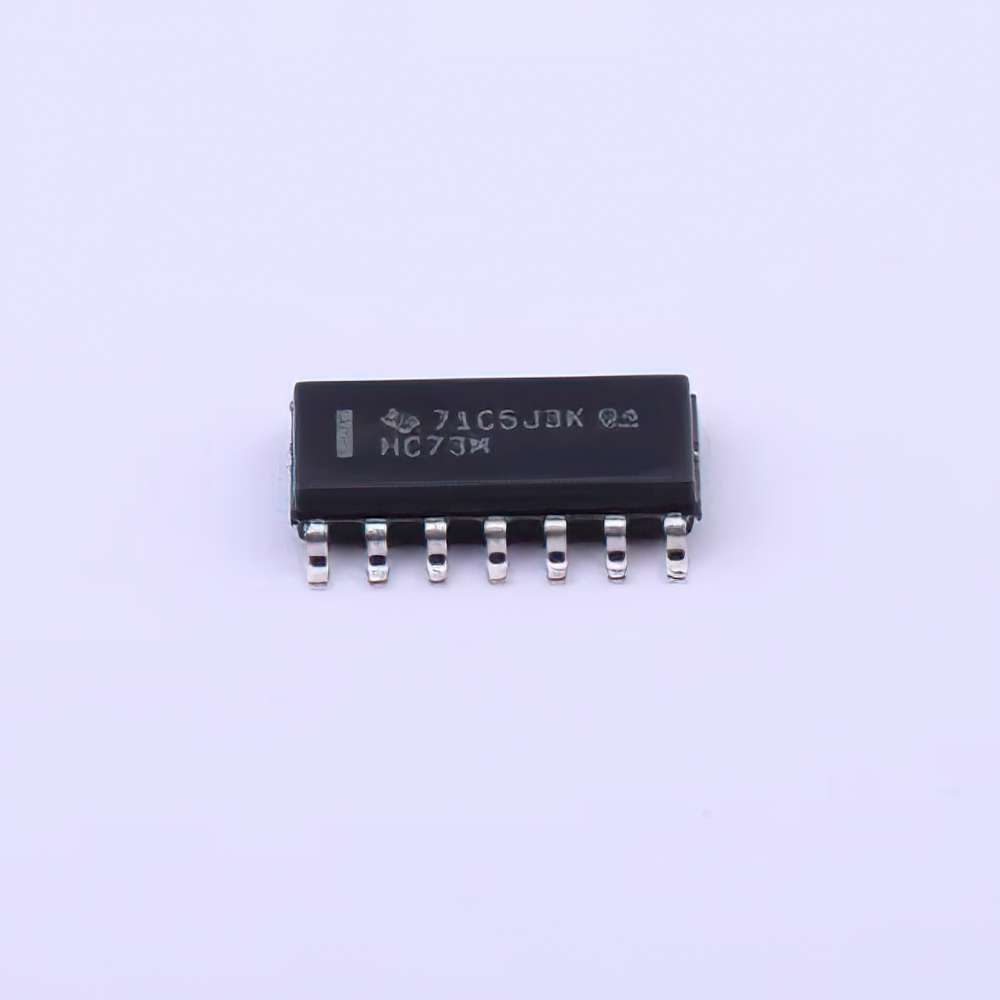

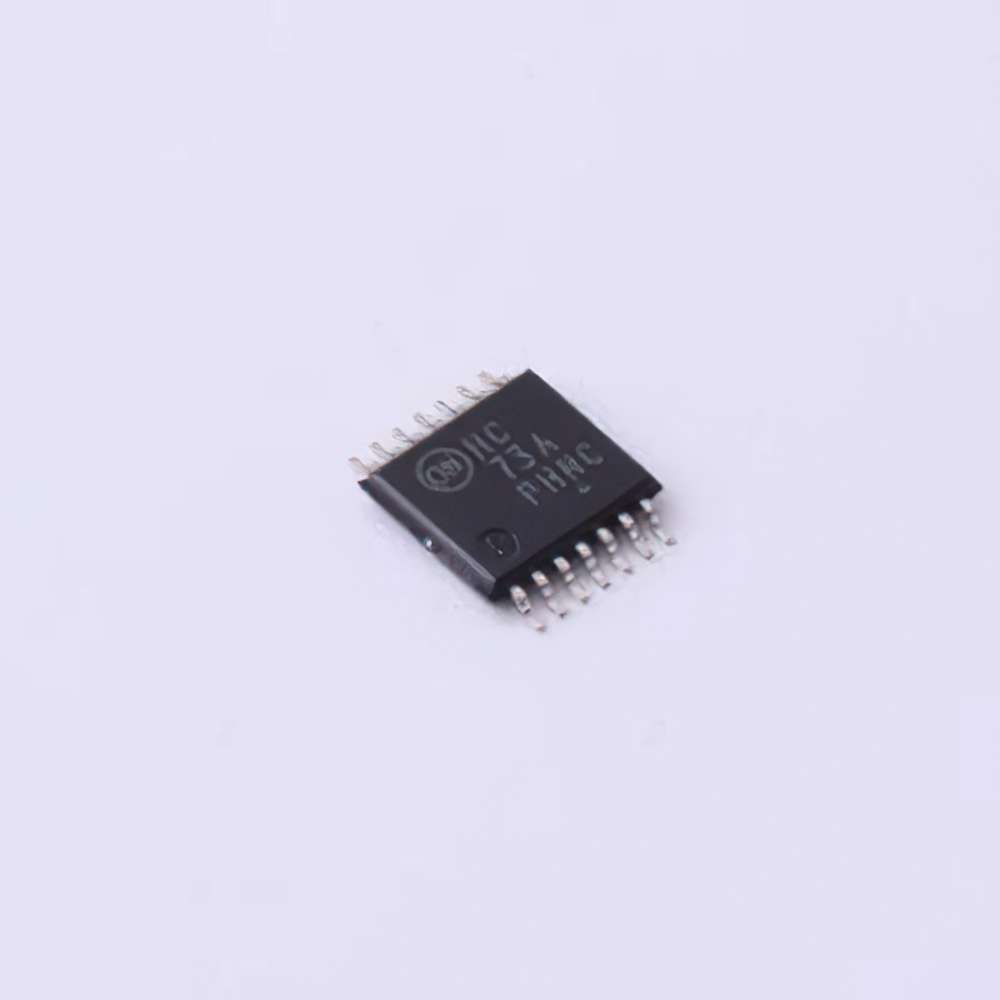

CD74HC73 High Speed ​​CMOS Logic Dual Falling Edge J-K Flip-Flop with Reset

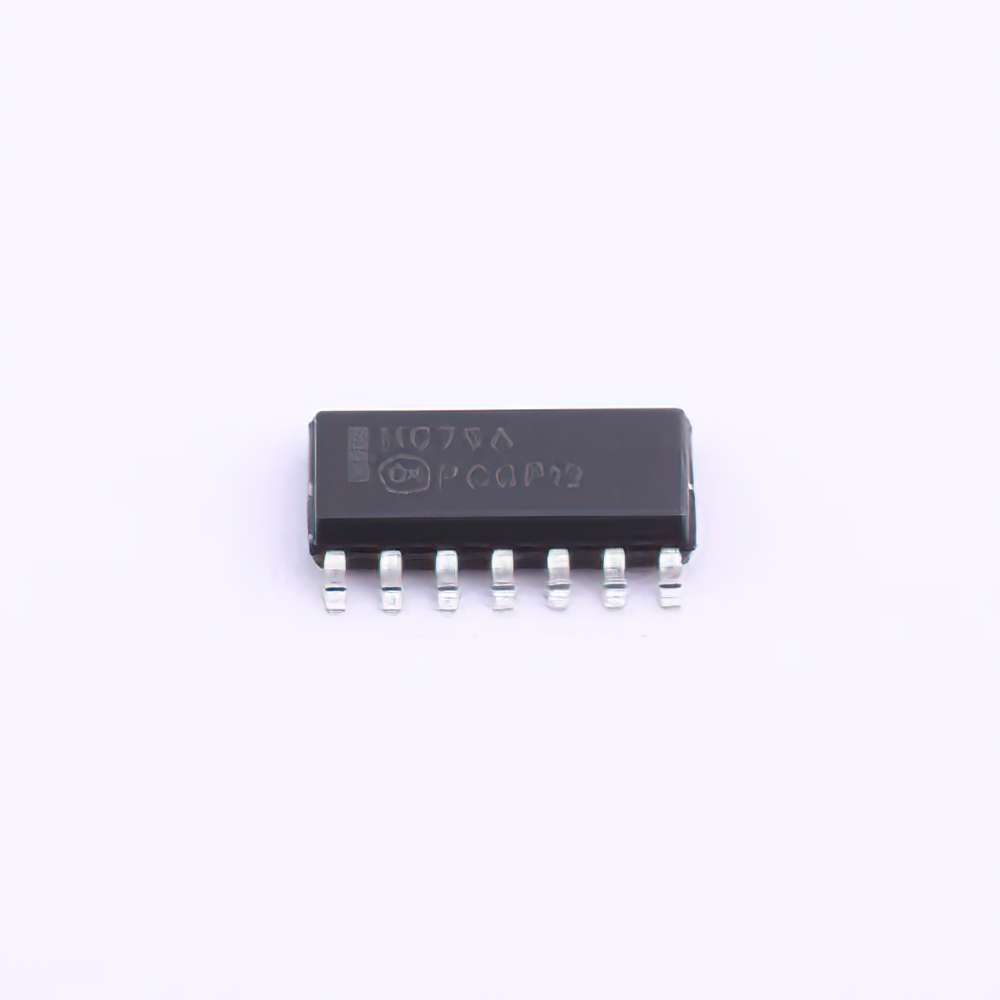

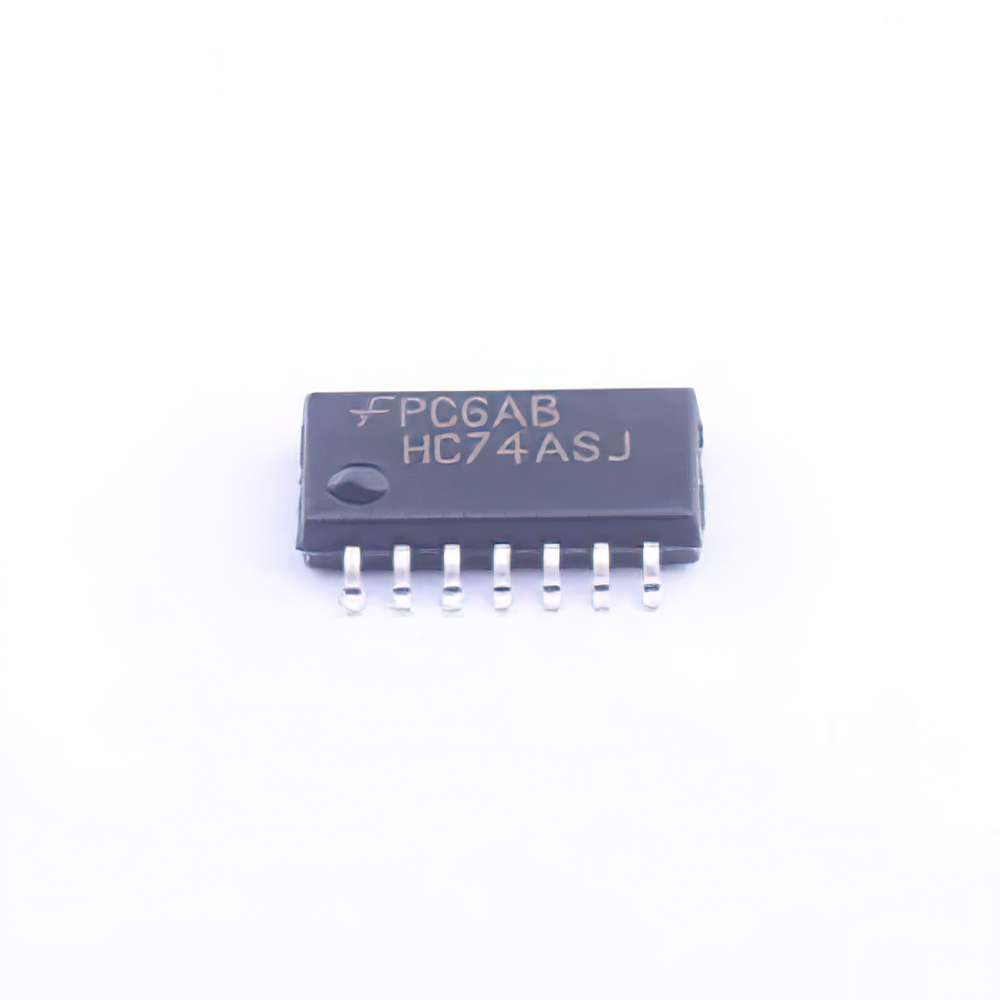

The MM74HC74A is fabricated on an advanced CMOS process and operates at speeds comparable to LS-TTL parts. It has high noise immunity and low power consumption of a standard CMOS integrated circuit and can drive 10 LS-TTL loads. This flip-flop has independent data, preset, clear and clock inputs, and Q and Q# outputs. During the forward transition of the clock pulse, the logic level at the data input is transferred to the output. The preset and clear inputs are clock independent and are accomplished with a low on the appropriate input. The 74HC logic family is functionally and pin-out compatible with the standard 74LS logic family. All inputs are protected from electrostatic discharge damage by clamping internal diodes to VCC and ground.

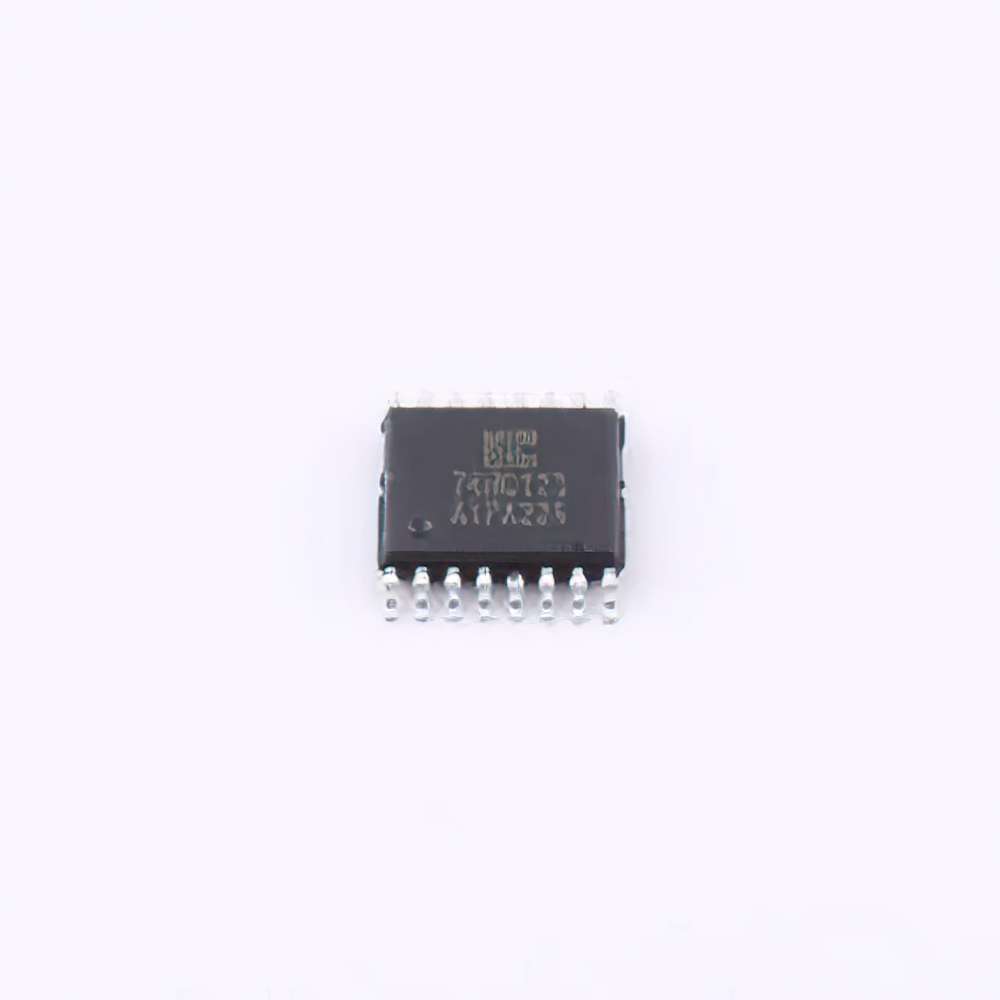

Series: 74HC Logic Type: Monostable Number of Channels: 2 Schmitt Trigger Input: No Static Current (Max): 8uA Max Propagation Delay at V, Max CL: 43ns@6V, 50pF Low level output current (IOL): 5.2mA High level output current (IOH): 5.2mA Logic level-High: 1.5V~4.2V Logic level- Low: 0.5V~1.8V Power supply voltage: 2V~6V Working temperature: -40℃~+105℃
