Mill-Max Manufacturing Corp.

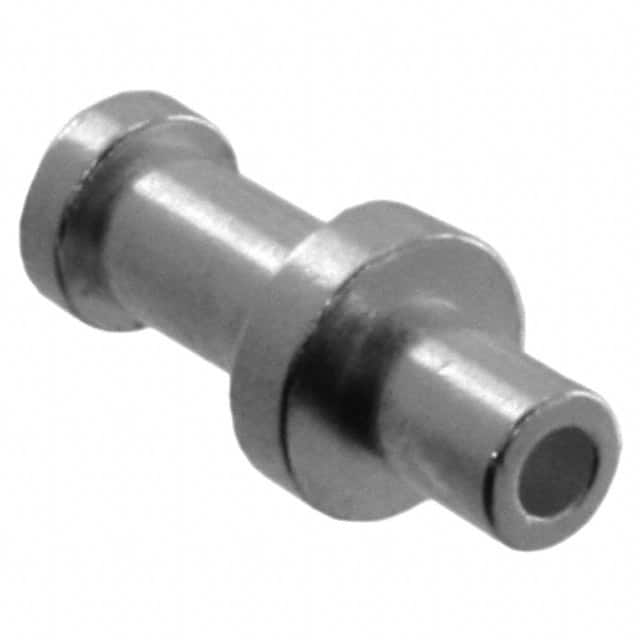

图片可能具有代表性。
产品详情请参阅规格.
2505-4-00-80-00-00-07-0
数据表

2505-4-00-80-00-00-07-0

TERM TURRET SNG
型号
2505-4-00-80-00-00-07-0
制造商/品牌
Mill-Max Manufacturing Corp.
系列
2505
零件状态
Active
安装类型
Through Hole
终止
Swage
接触完成
Tin
接触表面厚度
200.0µin (5.08µm)
总长度
0.343" (8.71mm)
接触材料
Brass Alloy
绝缘
Non-Insulated
板厚
0.125" (3.18mm)
端子类型
Single End
安装孔直径
0.076" (1.93mm)
法兰直径
0.125" (3.18mm)
长度 - 法兰下方
0.156" (3.96mm)
炮塔数量
Single
长度 - 高于船舷
0.187" (4.75mm)
直径 - 转塔头
0.097" (2.46mm)
桩侧 OD
0.071" (1.80mm)
质押方 ID
0.043" (1.09mm)
请求报价
请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 2762329346@qq.com，我们将尽快回复。
有货 36738 PCS
