C4ATDBW5300A30J
CAP FILM 30UF 5% 250VDC RAD 4LD
型号
C4ATDBW5300A30J
制造商/品牌
系列
C4A
零件状态
Active
包装
Bulk
工作温度
-40°C ~ 85°C
评级
-
安装类型
Through Hole
终止
PC Pins
尺寸/尺寸
1.673" L x 1.181" W (42.50mm x 30.00mm)
坐姿高度（最大）
1.772" (45.00mm)
电容
30µF
宽容
±5%
特征
-
应用
DC Link, DC Filtering; High Frequency, Switching
封装/箱体
Radial - 4 Leads
引线间距
1.476" (37.50mm)
ESR（等效串联电阻）
2.6 mOhms
额定电压 - 交流
160V
额定电压 - 直流
250V
介电材料
Polypropylene (PP), Metallized
请求报价
请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 2762329346@qq.com，我们将尽快回复。
有货 45958 PCS
联系信息
more_pkgimg

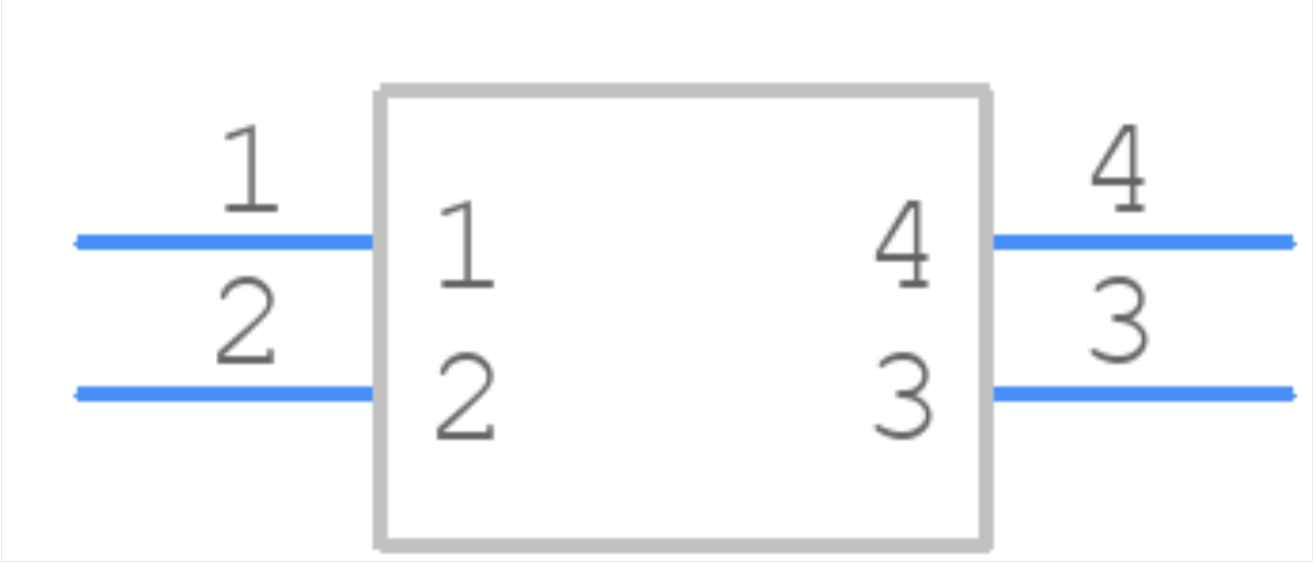

more_schimg

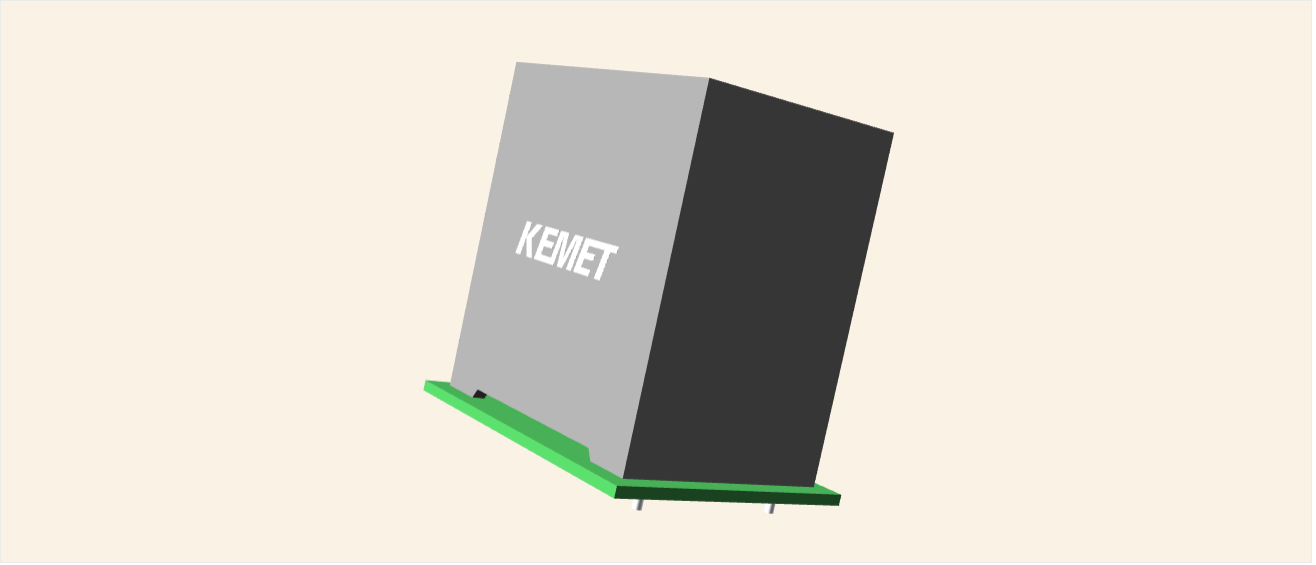

more_3dimg
more_desctext
KEMET 30μF Polypropylene Capacitor PP 160 V ac, 250 V dc ±5% Tolerance Through Hole C4AT Series
Pin Count--------4
Part Category--------Capacitor
Package Category--------Other

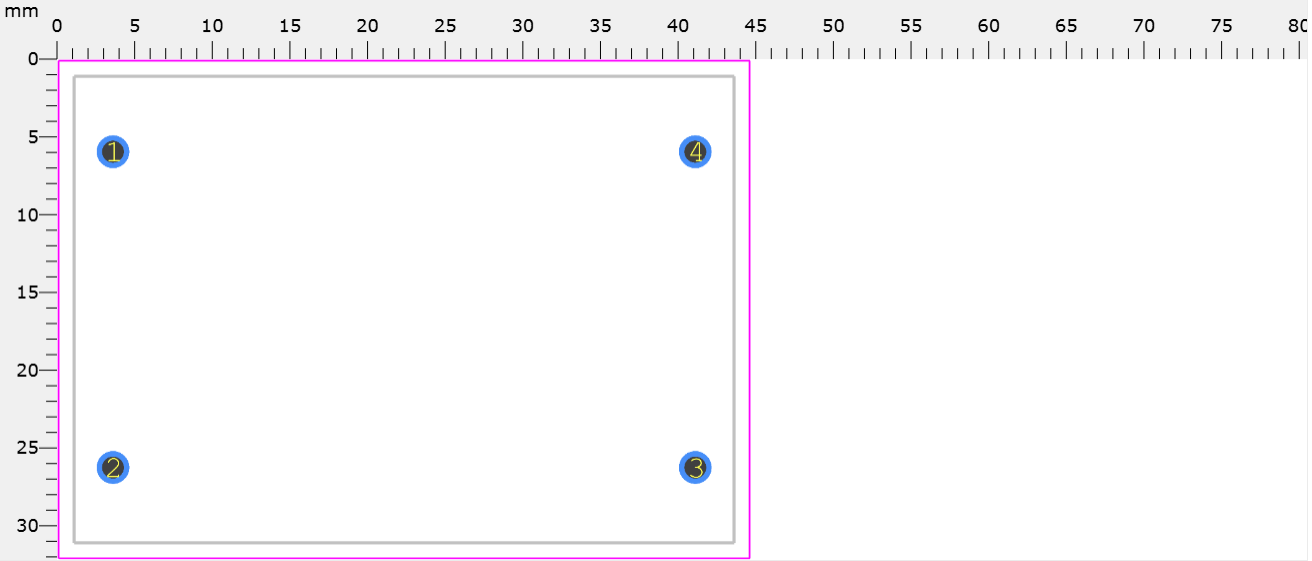

Footprint Name--------Other - C4ATDBW5300A30J-2
Pin Count--------4
Part Category--------Capacitor
Package Category--------Other
Footprint Name--------Other - C4ATDBW5300A30J-2
download_pdf
more_faq
C4ATDBW5300A30J Frequently Asked Questions (FAQs)
What is the recommended soldering temperature for the C4ATDBW5300A30J?
The recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
Can the C4ATDBW5300A30J be used in high-vibration applications?
Yes, the C4ATDBW5300A30J is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace.
Is the C4ATDBW5300A30J compatible with lead-free soldering processes?
Yes, the C4ATDBW5300A30J is compatible with lead-free soldering processes and is RoHS compliant.
What is the maximum operating temperature range for the C4ATDBW5300A30J?
The maximum operating temperature range for the C4ATDBW5300A30J is -55°C to 125°C.
Can the C4ATDBW5300A30J be used in high-humidity environments?
Yes, the C4ATDBW5300A30J is designed to operate in high-humidity environments and has a moisture sensitivity level (MSL) of 3.
What is the recommended soldering temperature for the C4ATDBW5300A30J?
The recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
Can the C4ATDBW5300A30J be used in high-vibration applications?
Yes, the C4ATDBW5300A30J is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace.
Is the C4ATDBW5300A30J compatible with lead-free soldering processes?
Yes, the C4ATDBW5300A30J is compatible with lead-free soldering processes and is RoHS compliant.
What is the maximum operating temperature range for the C4ATDBW5300A30J?
The maximum operating temperature range for the C4ATDBW5300A30J is -55°C to 125°C.
Can the C4ATDBW5300A30J be used in high-humidity environments?
Yes, the C4ATDBW5300A30J is designed to operate in high-humidity environments and has a moisture sensitivity level (MSL) of 3.
