LIS2DW12TR Frequently Asked Questions (FAQs)


What is the recommended power-on sequence for the LIS2DW12TR?
The recommended power-on sequence is to first apply VDDIO, then VDD, and finally enable the device by setting the CS pin low. This ensures proper initialization and prevents unwanted behavior.


How do I handle the interrupt signals from the LIS2DW12TR?
The interrupt signals (INT1 and INT2) are active-low and open-drain. You should use an external pull-up resistor to VDDIO and connect the interrupt signals to a microcontroller's interrupt input or a GPIO with internal pull-up.


What is the purpose of the self-test feature in the LIS2DW12TR?
The self-test feature allows you to verify the accelerometer's functionality by applying a known stimulus to the sensing elements. This can be used to detect any potential issues with the device or the surrounding circuitry.


How do I convert the accelerometer's output data to meaningful units like g-forces or meters per second squared?
You need to apply the sensitivity scale factor (LSB/g) and the zero-g level (offset) to the raw output data. These values can be found in the datasheet or determined through calibration. The resulting values will be in units of g-forces or meters per second squared.

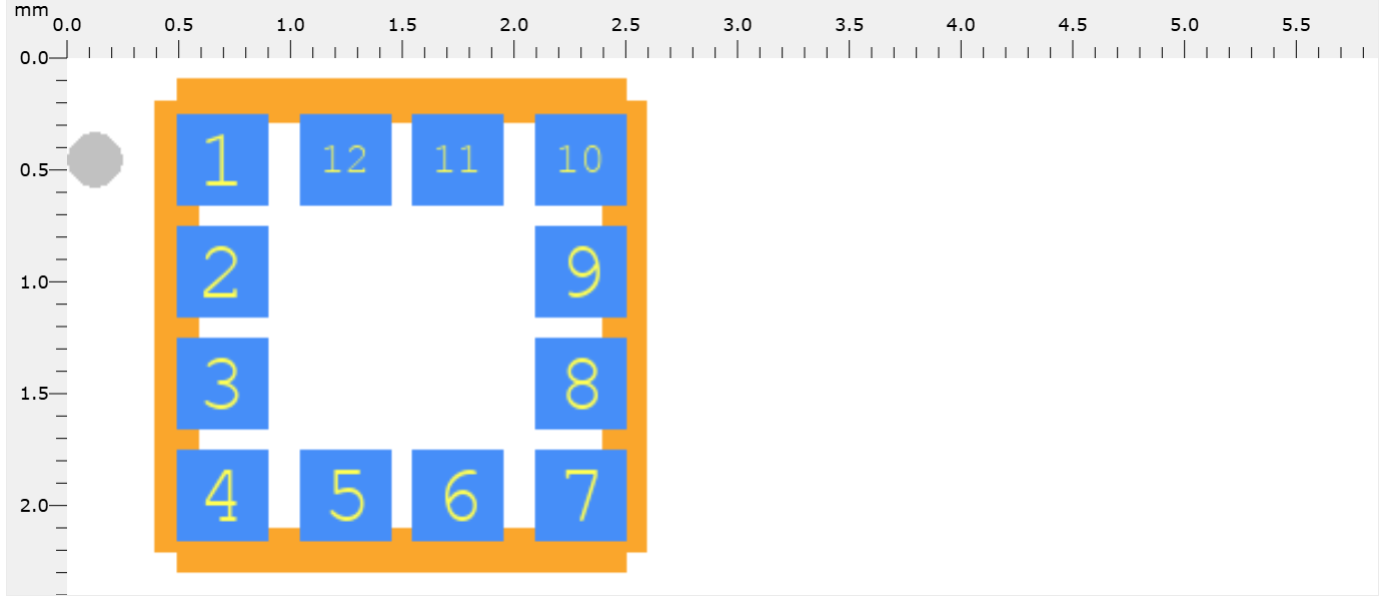

What is the recommended layout and placement for the LIS2DW12TR on a PCB?
Keep the accelerometer away from noise sources, such as switching regulators and high-frequency signals. Use a solid ground plane and short, direct connections to the device. Avoid routing sensitive signals near the accelerometer's pins.
