购买 ADI (Adeno) ADXRS453BRGZ ADXRS453BRGZ

ADI (Adeno)

图片可能具有代表性。
产品详情请参阅规格.

ADXRS453BRGZ

型号

ADXRS453BRGZ

类目

Sensors > Attitude Sensor/Gyroscope

制造商/品牌

ADI (Adeno)

封装

SOIC-16-300mil

包装

Tube

包裹数量

简介

SPI output detects angular velocity up to ±300°/s

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 2762329346@qq.com，我们将尽快回复。

有货 79743 PCS

联系信息

more_pkgimg

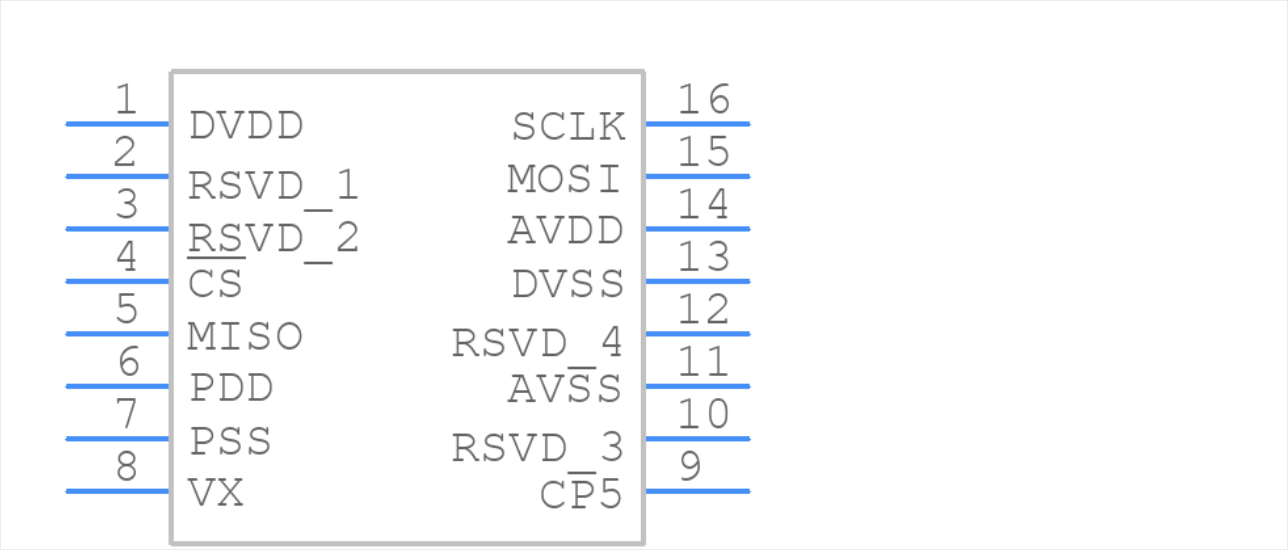

more_schimg

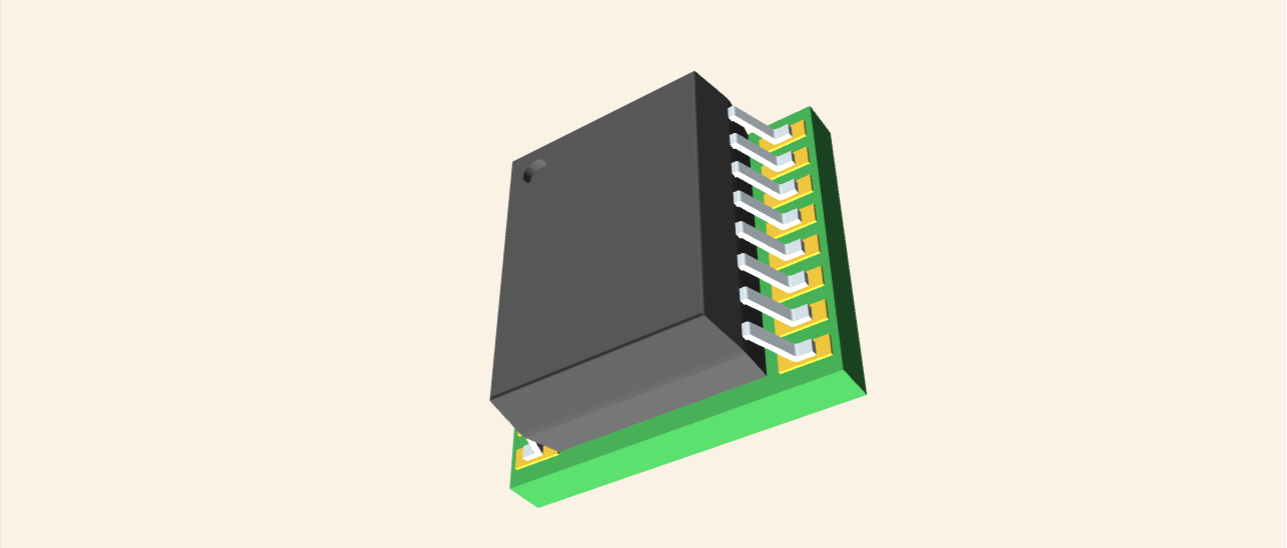

more_3dimg

more_spec

About Analog Devices

Analog Devices, Inc. (ADI) is a publicly traded company that designs, develops, and manufactures high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs).
The company was founded in 1965 and is headquartered in Norwood, Massachusetts.
ADI serves a wide range of industries, including aerospace and defense, automotive, communications, consumer, industrial, medical, and test and measurement.
The company's product portfolio includes data converters, amplifiers and comparators, power management ICs, microcontrollers, sensors, and radio frequency (RF) and microwave components, among others.
ADI is dedicated to innovation and customer satisfaction, and is committed to providing its customers with high-quality, reliable solutions to meet their needs.
With a focus on energy efficiency and sustainability, ADI is a leader in the analog and mixed-signal IC industry, driving technological advancements and providing innovative solutions to the world's most challenging problems.

*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.

more_desctext

ADXRS453BRGZ Analog Devices, Gyroscope, SPI, 16-Pin SOIC
Pin Count--------16
Part Category--------Integrated Circuit
Package Category--------Small Outline Packages

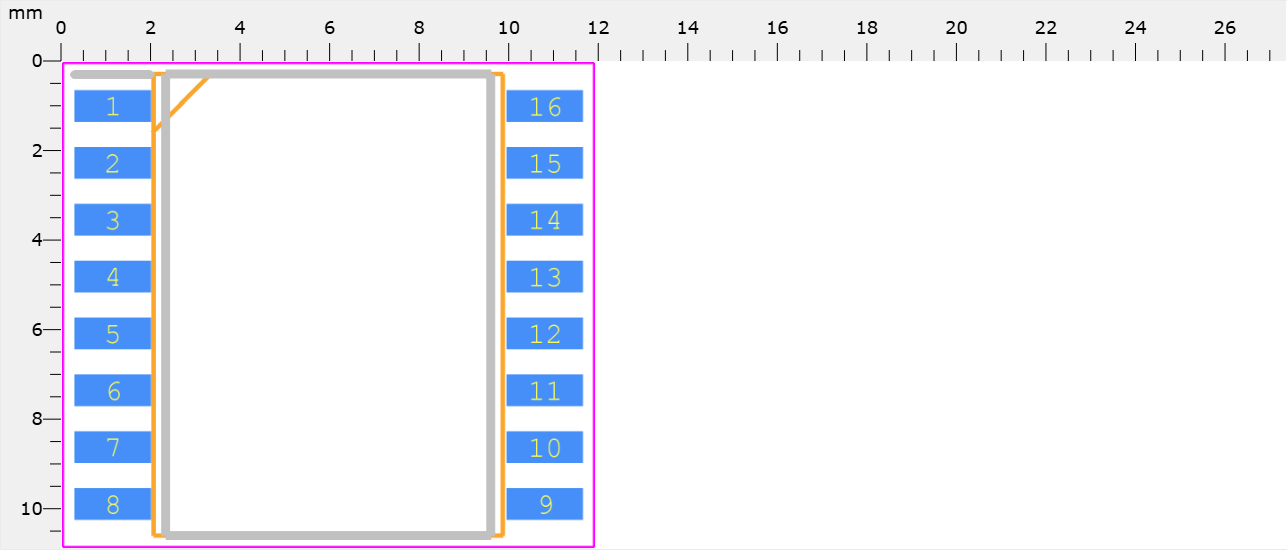

Footprint Name--------Small Outline Packages - ADXRS453BRGZ

download_pdf

more_faq

ADXRS453BRGZ Frequently Asked Questions (FAQs)

What is the recommended PCB layout and placement for the ADXRS453BRGZ?
The recommended PCB layout and placement for the ADXRS453BRGZ involves keeping the device away from high-current carrying traces, avoiding vias under the device, and using a solid ground plane to reduce noise. A 4-layer PCB with a dedicated ground plane is recommended.

How do I calibrate the ADXRS453BRGZ?
The ADXRS453BRGZ does not require calibration in the classical sense. However, it's recommended to perform a zero-rate offset calibration to account for any bias in the sensor. This can be done by taking the average output of the sensor when it's stationary and subtracting it from the output signal.

What is the maximum operating temperature range for the ADXRS453BRGZ?
The ADXRS453BRGZ is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.

How do I handle the high-pass filtering required for the ADXRS453BRGZ?
The ADXRS453BRGZ requires a high-pass filter to remove the bias voltage and allow the sensor to measure the angular rate. A simple RC filter with a cutoff frequency of around 0.01 Hz to 0.1 Hz can be used. The exact filter design will depend on the specific application requirements.

What is the recommended power supply decoupling for the ADXRS453BRGZ?
It's recommended to use a 10 μF ceramic capacitor in parallel with a 100 nF ceramic capacitor to decouple the power supply pins of the ADXRS453BRGZ. This will help to reduce noise and ensure stable operation.
