AD7606BSTZ

8-channel 200kHz 16-bit ADC DSP interface

型号

AD7606BSTZ

类目

ADC/DAC/Data Conversion > Analog-to-digital conversion chip ADC

制造商/品牌

ADI

封装

LQFP-64(10x10)

包装

the tray

包裹数量

160

简介

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 2762329346@qq.com，我们将尽快回复。

有货 97989 PCS

联系信息

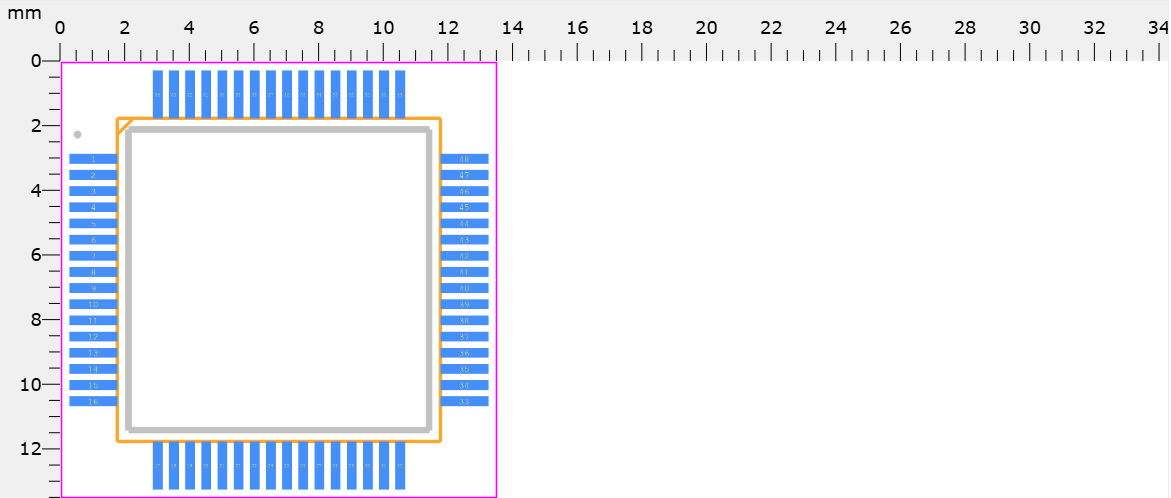

more_pkgimg

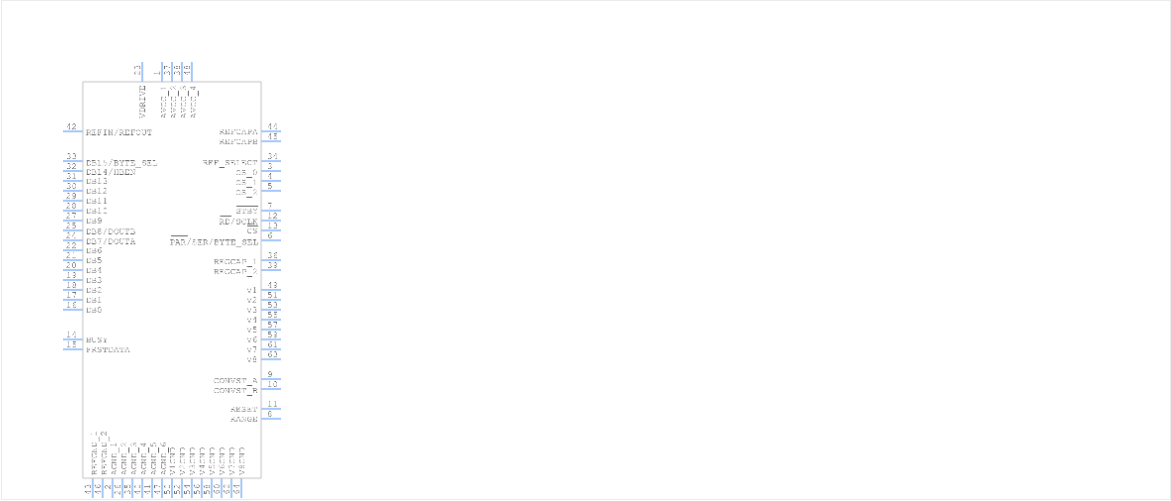

more_schimg

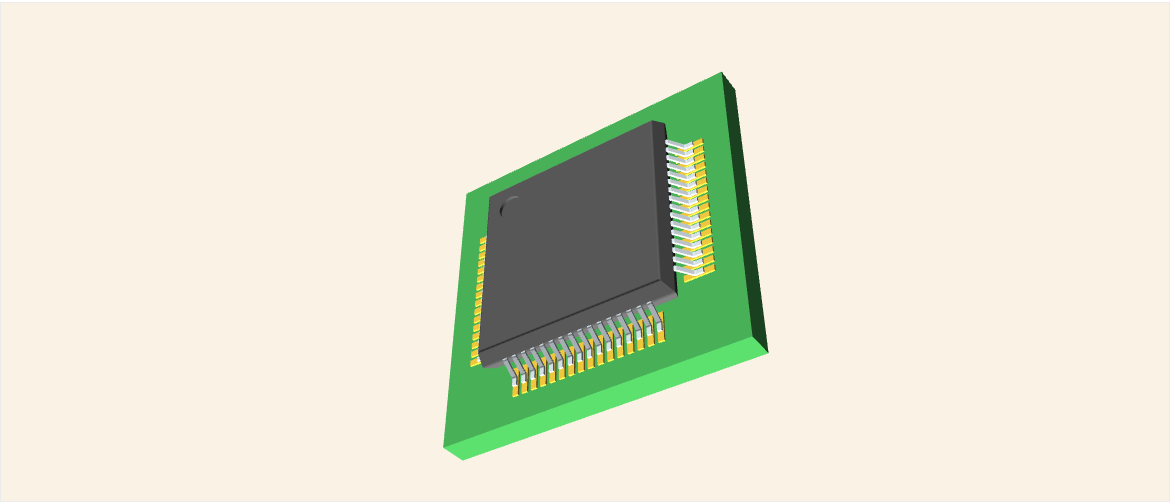

more_3dimg

more_spec

AD7606BSTZ Product details
GENERAL DESCRIPTION
The AD76061/AD7606-6/AD7606-4 are 16-bit, simultaneous sampling, analog-to-digital data acquisition systems (DAS) with eight, six, and four channels, respectively. Each part contains analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, a 16-bit charge redistribution successive approximation analog-to-digital converter (ADC), a flexible digital filter, a 2.5 V reference and reference buffer, and high speed serial and parallel interfaces.

FEATURES
8/6/4 simultaneously sampled inputs
True bipolar analog input ranges: ±10 V, ±5 V
Single 5 V analog supply and 2.3 V to 5 V VDRIVE
Fully integrated data acquisition solution
Analog input clamp protection
Input buffer with 1 MΩ analog input impedance
Second-order antialiasing analog filter
On-chip accurate reference and reference buffer
16-bit ADC with 200 kSPS on all channels
Oversampling capability with digital filter
Flexible parallel/serial interface
SPI/QSPI™/MICROWIRE™/DSP compatible
Performance
7 kV ESD rating on analog input channels
95.5 dB SNR, −107 dB THD
±0.5 LSB INL, ±0.5 LSB DNL
Low power: 100 mW
Standby mode: 25 mW
64-lead LQFP package

APPLICATIONS
Power-line monitoring and protection systems
Multiphase motor control
Instrumentation and control systems
Multiaxis positioning systems
Data acquisition systems (DAS)

more_desctext

Bipolar Input, Simultaneous Sampling ADC
Pin Count--------64
Part Category--------Integrated Circuit
Package Category--------Quad Flat Packages
Footprint Name--------Quad Flat Packages - AD1939WBSTZ

download_pdf

more_faq

AD7606BSTZ Frequently Asked Questions (FAQs)

What is the recommended layout and routing for the AD7606BSTZ?
A good layout and routing for the AD7606BSTZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a single-point ground and to keep the analog input traces as short as possible.

How do I optimize the performance of the AD7606BSTZ in a noisy environment?
To optimize the performance of the AD7606BSTZ in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Also, consider using a low-pass filter at the input to reduce high-frequency noise.

What is the maximum sampling rate of the AD7606BSTZ?
The maximum sampling rate of the AD7606BSTZ is 200 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency and the conversion time of the ADC.

How do I calibrate the AD7606BSTZ?
The AD7606BSTZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then adjusting the internal calibration registers to achieve the desired accuracy.

What is the power consumption of the AD7606BSTZ?
The power consumption of the AD7606BSTZ depends on the operating mode and the sampling rate. In normal mode, the typical power consumption is around 35 mW at 3.3 V supply voltage. In standby mode, the power consumption is around 1.5 mW.
