购买 Texas Instruments TPS3808G33DBVR IC VOLT SUPERVISOR 3.3V SOT23-6

图片可能具有代表性。
产品详情请参阅规格.

更多信息数据表

TPS3808G33DBVR

IC VOLT SUPERVISOR 3.3V SOT23-6

型号

TPS3808G33DBVR

制造商/品牌

Texas Instruments

系列

零件状态

Active

包装

Tape & Reel (TR)

工作温度

-40°C ~ 125°C (TJ)

安装类型

Surface Mount

封装/箱体

SOT-23-6

类型

Simple Reset/Power-On Reset

供应商器件封装

SOT-23-6

输出

Open Drain or Open Collector

重置

Active Low

监测电压数量

重置超时

Adjustable/Selectable

电压 - 阈值

3.07V

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 2762329346@qq.com，我们将尽快回复。

有货 54737 PCS

联系信息

more_pkgimg

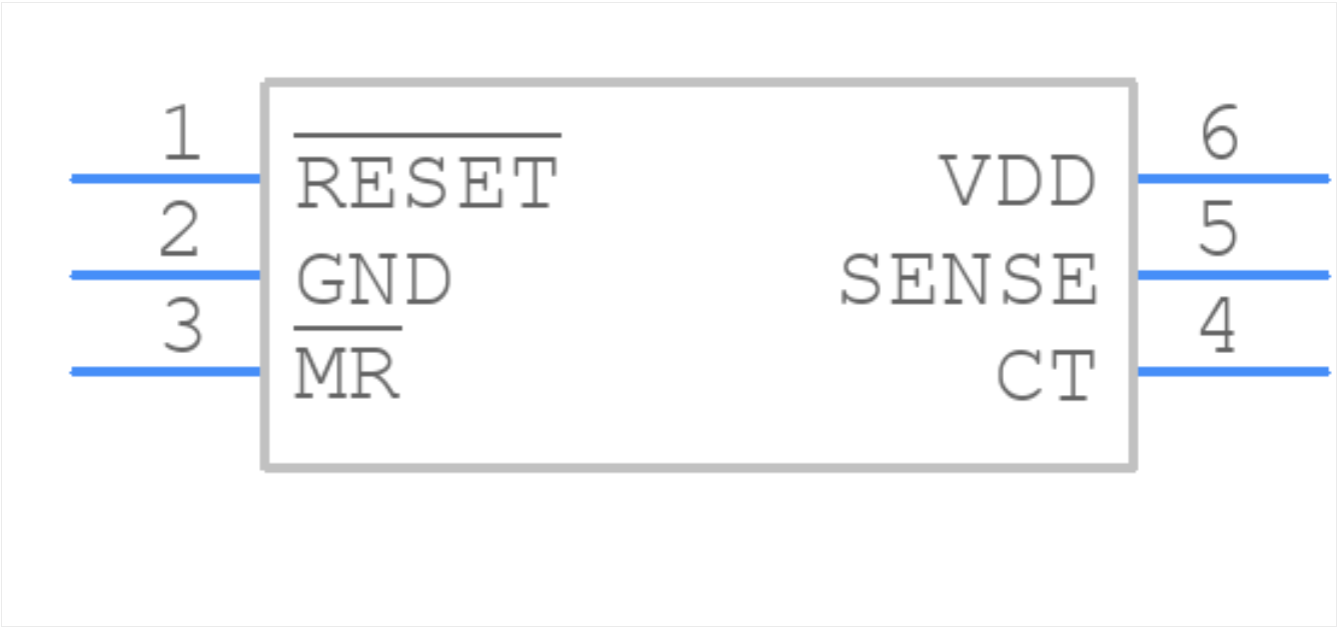

more_schimg

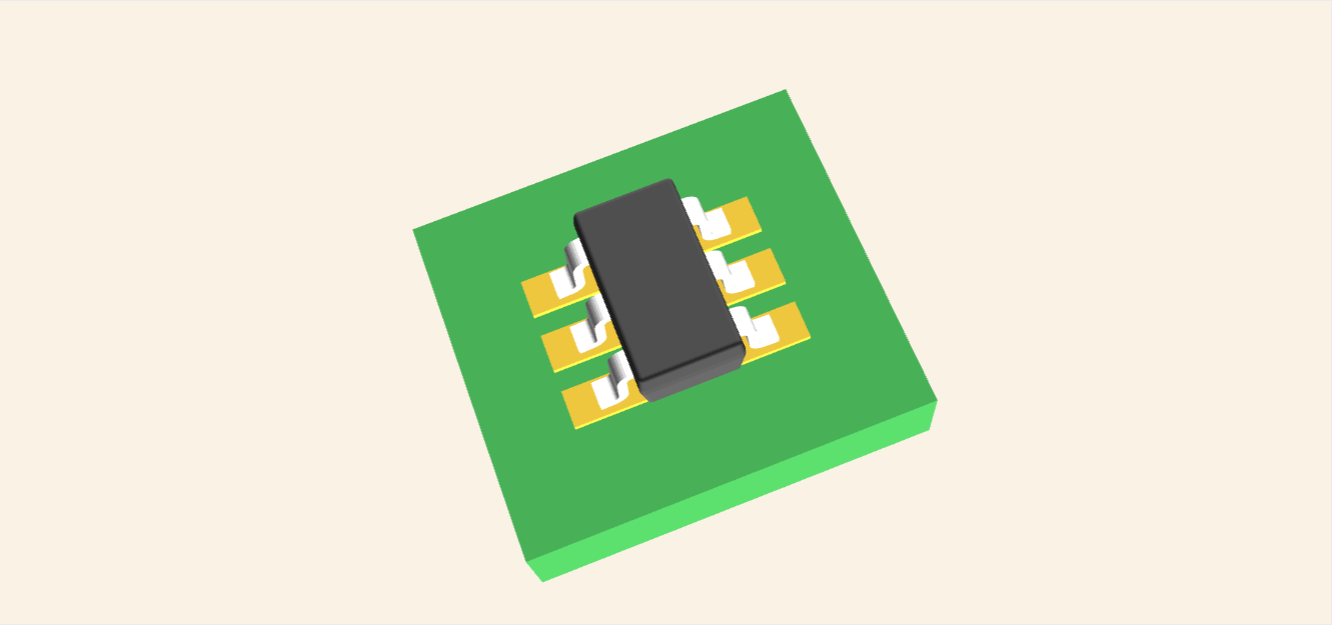

more_3dimg

more_spec

About Texas Instruments

Texas Instruments (TI) is a publicly traded company that designs and manufactures semiconductor and computer technology products.

It was founded in 1930 and is headquartered in Dallas, Texas.

TI is a global leader in the production of analog and digital signal processing (DSP) integrated circuits, as well as embedded processors and other microcontroller products.

The company serves customers in a variety of industries, including automotive, communications, computing, industrial, and consumer electronics.

TI's product portfolio includes data converters, amplifiers and comparators, power management ICs, microcontrollers, sensors, and wireless connectivity solutions, among others.

TI is committed to innovation and customer satisfaction, and has a long history of delivering high-quality, reliable products to its customers.

With a focus on sustainability and energy efficiency, TI is dedicated to making a positive impact on the world through its technology and products.

*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.

more_desctext

Low-quiescent current supervisor with programmable-delay and manual reset
Pin Count--------6
Part Category--------Integrated Circuit
Package Category--------SOT23 (6-Pin)

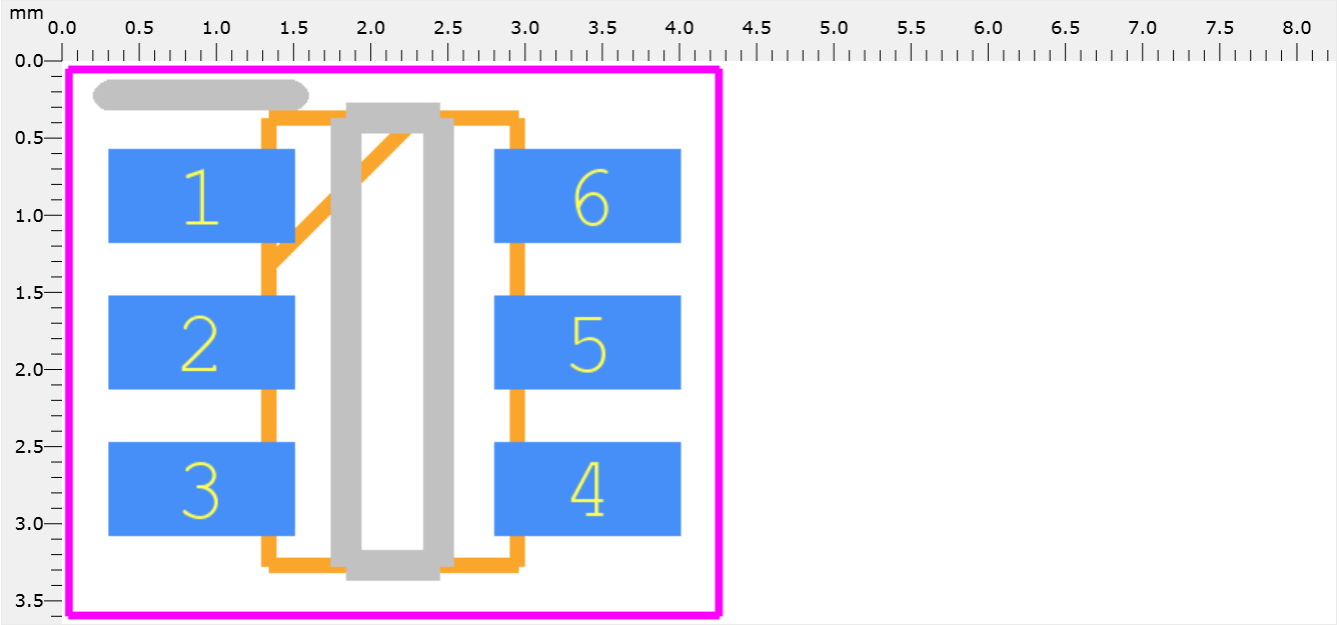

Footprint Name--------SOT23 (6-Pin) - DBV (R-PDSO-G6)

download_pdf

more_faq

TPS3808G33DBVR Frequently Asked Questions (FAQs)

What is the recommended layout and placement for the TPS3808G33DBVR to ensure optimal performance?
The recommended layout and placement for the TPS3808G33DBVR involves placing the device close to the power source, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it is recommended to use a low-ESR capacitor for the input capacitor and a low-ESL capacitor for the output capacitor.

How do I choose the right input and output capacitors for the TPS3808G33DBVR?
The choice of input and output capacitors for the TPS3808G33DBVR depends on the specific application requirements. In general, a low-ESR capacitor with a value of 1-10uF is recommended for the input capacitor, and a low-ESL capacitor with a value of 1-22uF is recommended for the output capacitor. The capacitor values and types should be chosen based on the specific requirements of the application, including the input voltage, output voltage, and output current.

What is the maximum input voltage that the TPS3808G33DBVR can handle?
The maximum input voltage that the TPS3808G33DBVR can handle is 18V. Exceeding this voltage may cause damage to the device.

How do I adjust the output voltage of the TPS3808G33DBVR?
The output voltage of the TPS3808G33DBVR can be adjusted by using a resistor divider network between the output pin and the ground pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.

What is the typical quiescent current of the TPS3808G33DBVR?
The typical quiescent current of the TPS3808G33DBVR is 20uA. This is the current consumed by the device when it is in standby mode.
