Lumileds

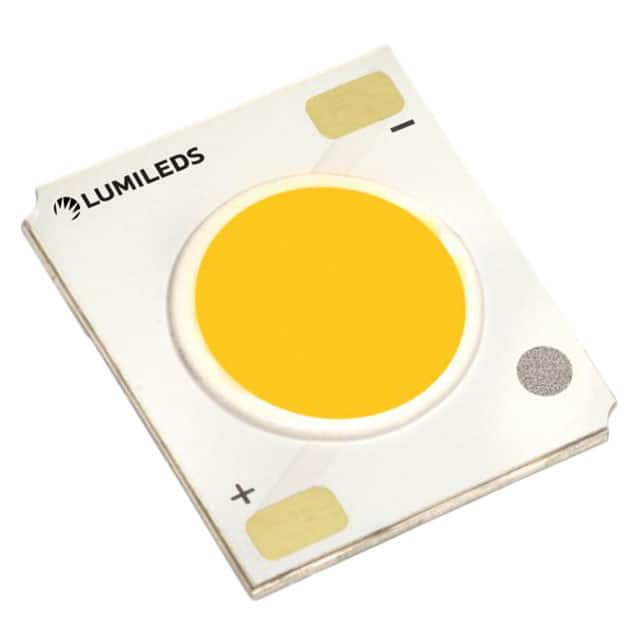

图片可能具有代表性。
产品详情请参阅规格.
L2C5-27901204E1300
数据表

L2C5-27901204E1300

LED COB CORE RANGE GEN3 WW RECT
型号
L2C5-27901204E1300
制造商/品牌
Lumileds
系列
LUXEON CoB Core Range Gen 3
零件状态
Active
颜色
White, Warm
包装
Tube
尺寸/尺寸
20.00mm L x 24.00mm W
特征
-
类型
Chip On Board (COB)
高度
1.50mm
配置
Rectangle
电流 - 最大
900mA
当前 - 测试
450mA
电压 - 正向 (Vf) （典型值）
34.8V
波长
-
视角
115°
色温（K）
2700K 3-Step MacAdam Ellipse
通量@电流/温度-测试
1788 lm (Typ)
温度 - 测试
85°C
流明/瓦@电流 - 测试
114 lm/W
CRI（显色指数）
90
发光表面 (LES)
13.00mm Diameter
镜头类型
Flat
请求报价
请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 2762329346@qq.com，我们将尽快回复。
有货 29583 PCS
