购买 Infineon Technologies IR2110STRPBF IC DRIVER HIGH/LOW SIDE 16SOIC

图片可能具有代表性。
产品详情请参阅规格.

更多信息数据表

IR2110STRPBF

IC DRIVER HIGH/LOW SIDE 16SOIC

型号

IR2110STRPBF

制造商/品牌

Infineon Technologies

系列

零件状态

Active

包装

Tape & Reel (TR)

输入类型

Non-Inverting

工作温度

-40°C ~ 150°C (TJ)

安装类型

Surface Mount

封装/箱体

16-SOIC (0.295", 7.50mm Width)

供应商器件封装

16-SOIC

电压 - 电源

3.3 V ~ 20 V

通道类型

Independent

驱动配置

Half-Bridge

司机人数

闸门类型

IGBT, N-Channel MOSFET

逻辑电压 - VIL、VIH

6V, 9.5V

电流 - 峰值输出（源、汇）

2A, 2A

高压侧电压 - 最大值（自举）

500V

上升/下降时间（典型值）

25ns, 17ns

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 2762329346@qq.com，我们将尽快回复。

有货 6218 PCS

联系信息

more_pkgimg

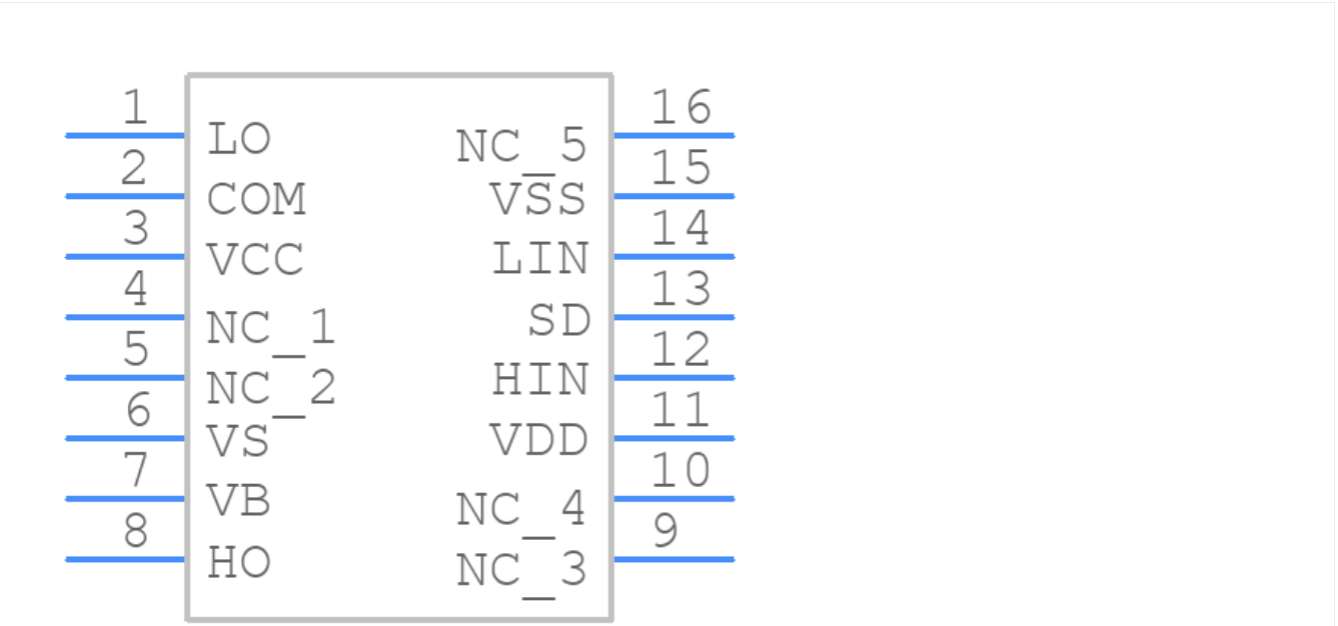

more_schimg

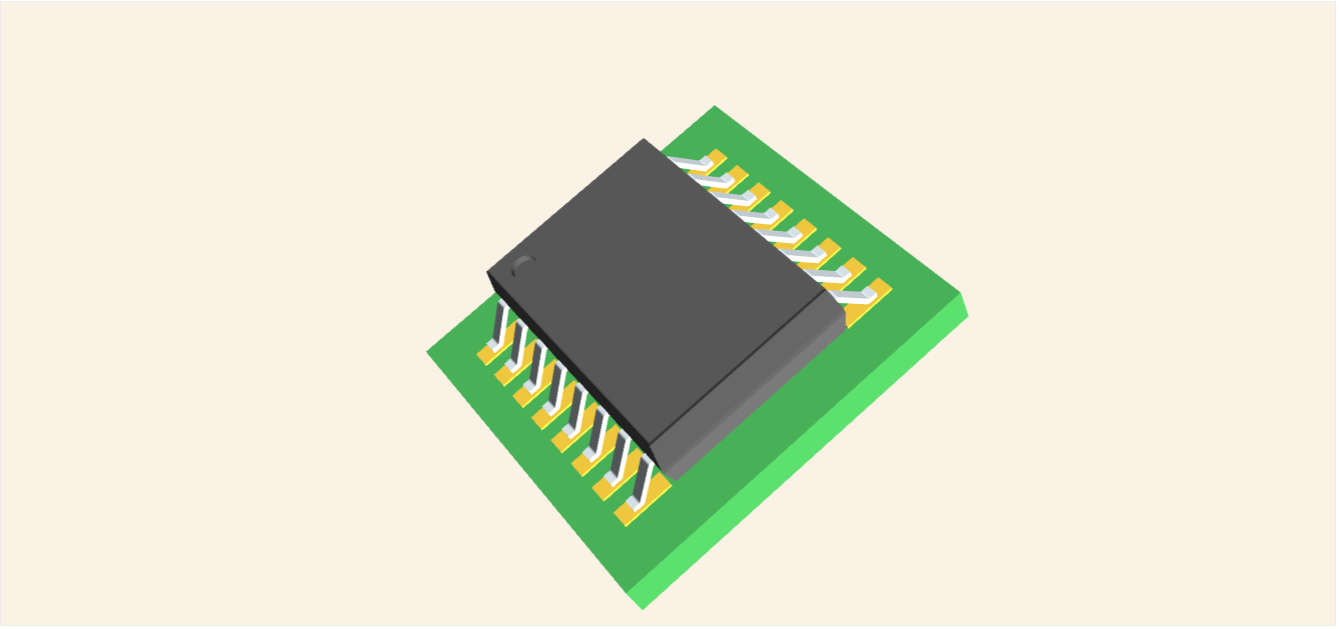

more_3dimg

more_spec

About International Rectifier

International Rectifier (IR) was an American company that specialized in the design and manufacture of power management and power control semiconductors.
The company was founded in 1947 and was headquartered in El Segundo, California.
IR provided a wide range of products including power management ICs, power MOSFETs, IGBTs, and other power control products.
The company's products were used in various applications such as computing, telecommunications, and industrial automation.
IR was known for its expertise in power management and control technology and its ability to deliver high-quality and reliable products to its customers.
In 2014, IR was acquired by Infineon Technologies, a leading provider of power management and control products and other semiconductor solutions.
The International Rectifier brand is no longer in use, but its technology and products continue to be a part of Infineon's portfolio.

*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.

more_desctext

Infineon IR2110STRPBF Dual High and Low Side MOSFET Power Driver, 2.5A 16-Pin, SOIC
Pin Count--------16
Part Category--------Integrated Circuit
Package Category--------Small Outline Packages
Footprint Name--------Small Outline Packages - IR2110STRPBF

download_pdf

more_faq

IR2110STRPBF Frequently Asked Questions (FAQs)

What is the maximum operating frequency of the IR2110?
The maximum operating frequency of the IR2110 is 500 kHz, but it can be operated at higher frequencies with reduced performance.

How do I ensure proper thermal management of the IR2110?
Proper thermal management of the IR2110 can be ensured by providing a heat sink, using a thermal interface material, and ensuring good airflow around the device.

What is the recommended dead time for the IR2110?
The recommended dead time for the IR2110 is typically in the range of 100-500 ns, depending on the specific application and switching frequency.

Can the IR2110 be used in a half-bridge configuration?
Yes, the IR2110 can be used in a half-bridge configuration, but it requires additional external circuitry to ensure proper operation.

How do I protect the IR2110 from overvoltage and undervoltage conditions?
The IR2110 can be protected from overvoltage and undervoltage conditions by using external voltage regulators, TVS diodes, and/or voltage monitoring circuits.
